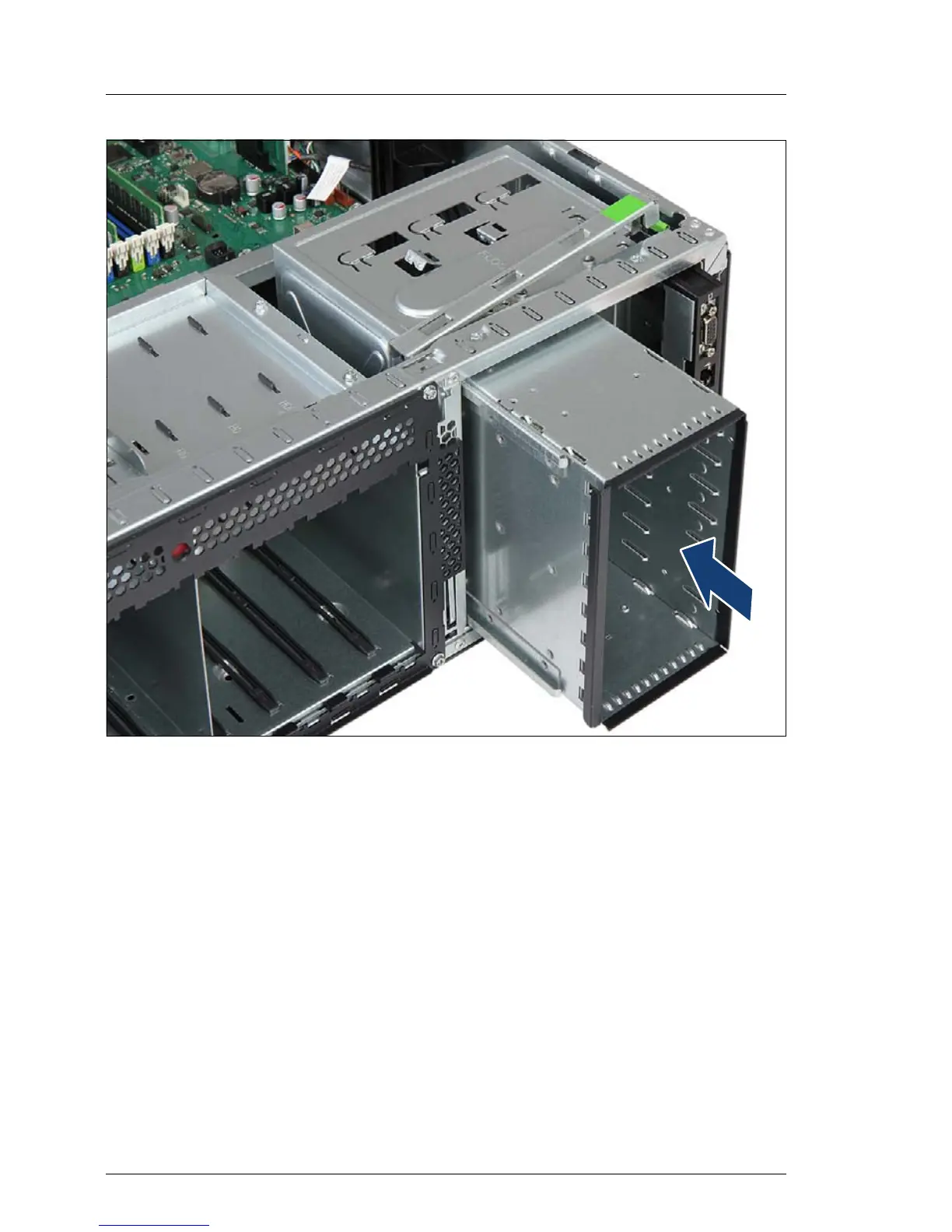

Figure 205: Inserting the HDD extension box
Ê Insert the 8x 2.5-inch HDD extension box into installation bays 2 and 3 and
carefully push in until the front screw hole on the front panel frame lines up
with the centering pin on the locking bar.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
7.4.8.4 Cabling the 8x 2.5-inch HDD extension box
Ê Connect SAS and power cables to the 8x 3.5-inch HDD SAS backplane as
described in section "24x 2.5-inch HDD / SSD SAS backplane cabling" on
page 200.
