15.8 Reinstalling accessible drives

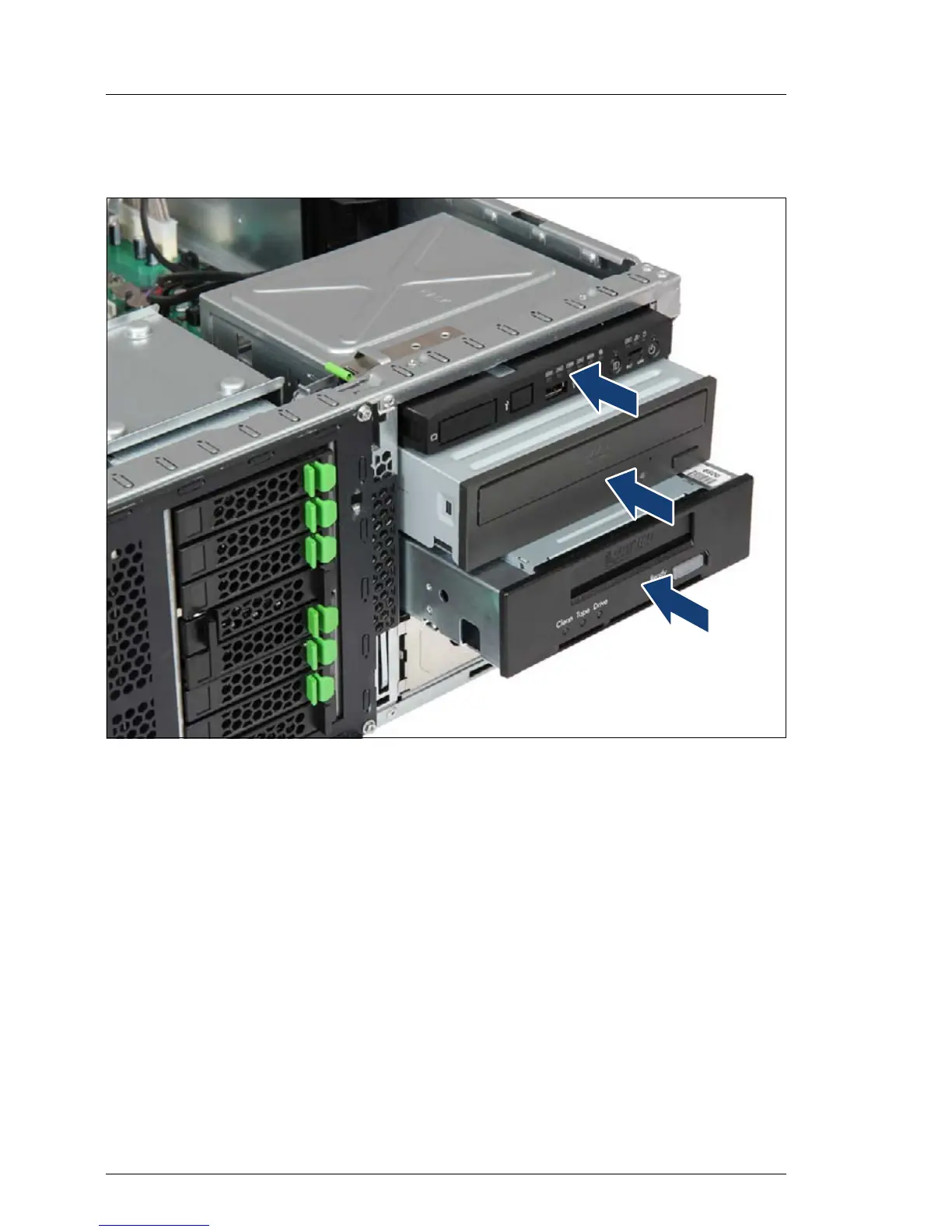

Figure 571: Reinstalling accessible drives
Ê Reinstall the front panel module (rotated by 90 degrees) as described in
section "Installing the front panel module" on page 610.
Ê Reinstall all accessible drives into their original bays (rotated by 90 degrees)
according to the mounting sequence in table 5 on page 531. Proceed as
described in section "Cabling the accessible drive" on page 539.
Ê If applicable, reinstall an HDD extension box into its original bay (rotated by
90 degrees) according to the mounting sequence in table 5 on page 531.
Proceed as described in section "HDD extension boxes" on page 284.
