9.6.5.2 Removing the FBU holder from the chassis

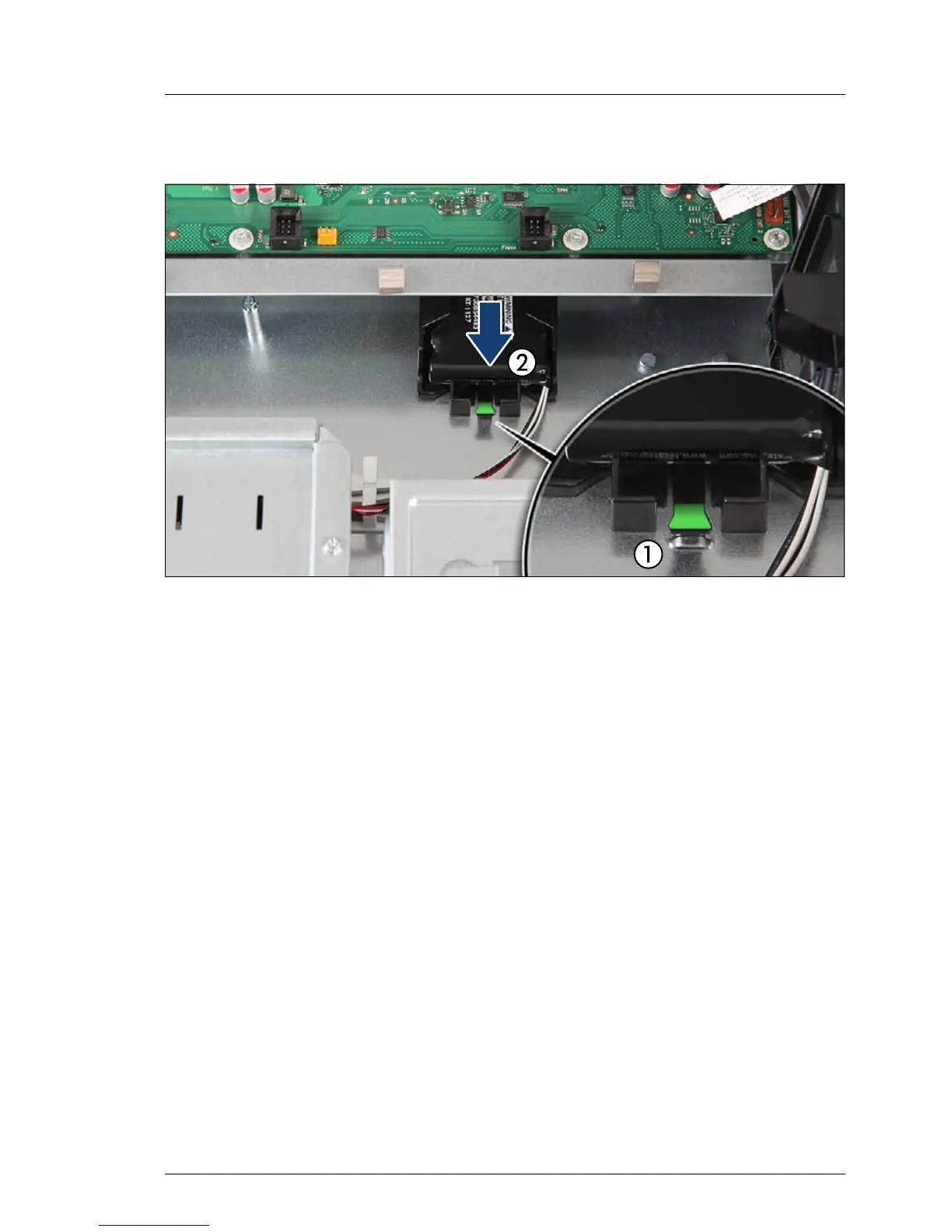

Figure 349: Removing the FBU holder from the chassis
Ê Carefully disconnect the FBU cable from the RAID controller.
Ê Remove the FBU cable from the cable guide.
Ê Lift up the locking handle on the FBU holder (1, see close-up) while sliding
the FBU holder towards the server front as far as it will go (2).
I After that, the fixation bolts on the chassis floor will rest in the wide
ends of the keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis.
9.6.5.3 Concluding steps
Ê "Installing the system fan holder" on page 331
Ê "Installing the system air duct" on page 83
Ê "Installing the SAS expander board" on page 309 (if applicable)
Ê "Closing the server" on page 98
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê "Connecting the server to the mains" on page 118
