7.4.8.3 Installing the 8x 2.5-inch HDD extension box

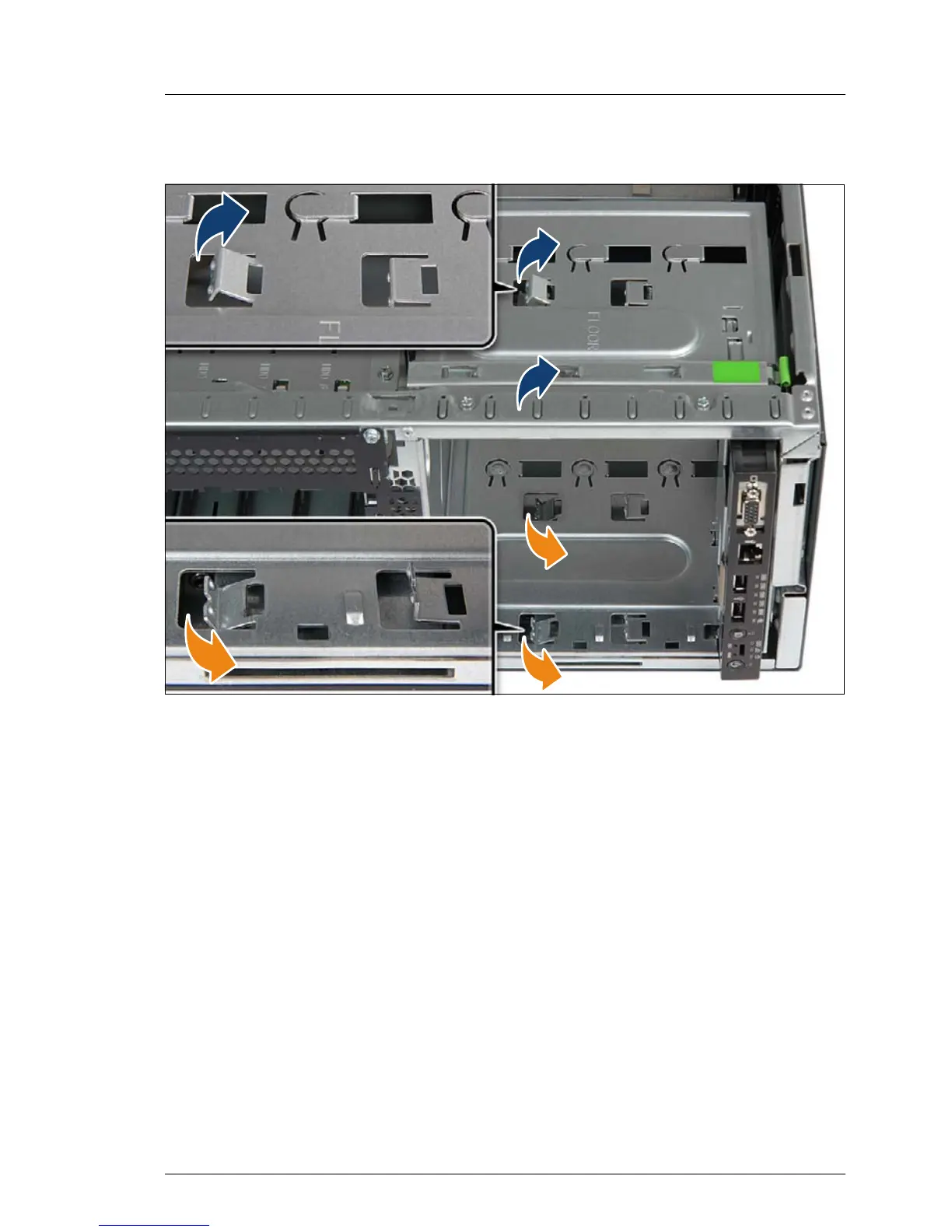

Figure 204: Checking mounting bracket positions
Ê Using a screw driver, bend the mounting brackets of the middle installation
bay outwards (see close-up):
Ê Bend up the upper two mounting brackets (see blue arrows).
Ê Bend down the lower two mounting brackets (see orange arrows).
Ê Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 91.
