Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 695
System board and components
14.6.3.2 Swapping processors
Preparing the processor socket load plates on the new system board

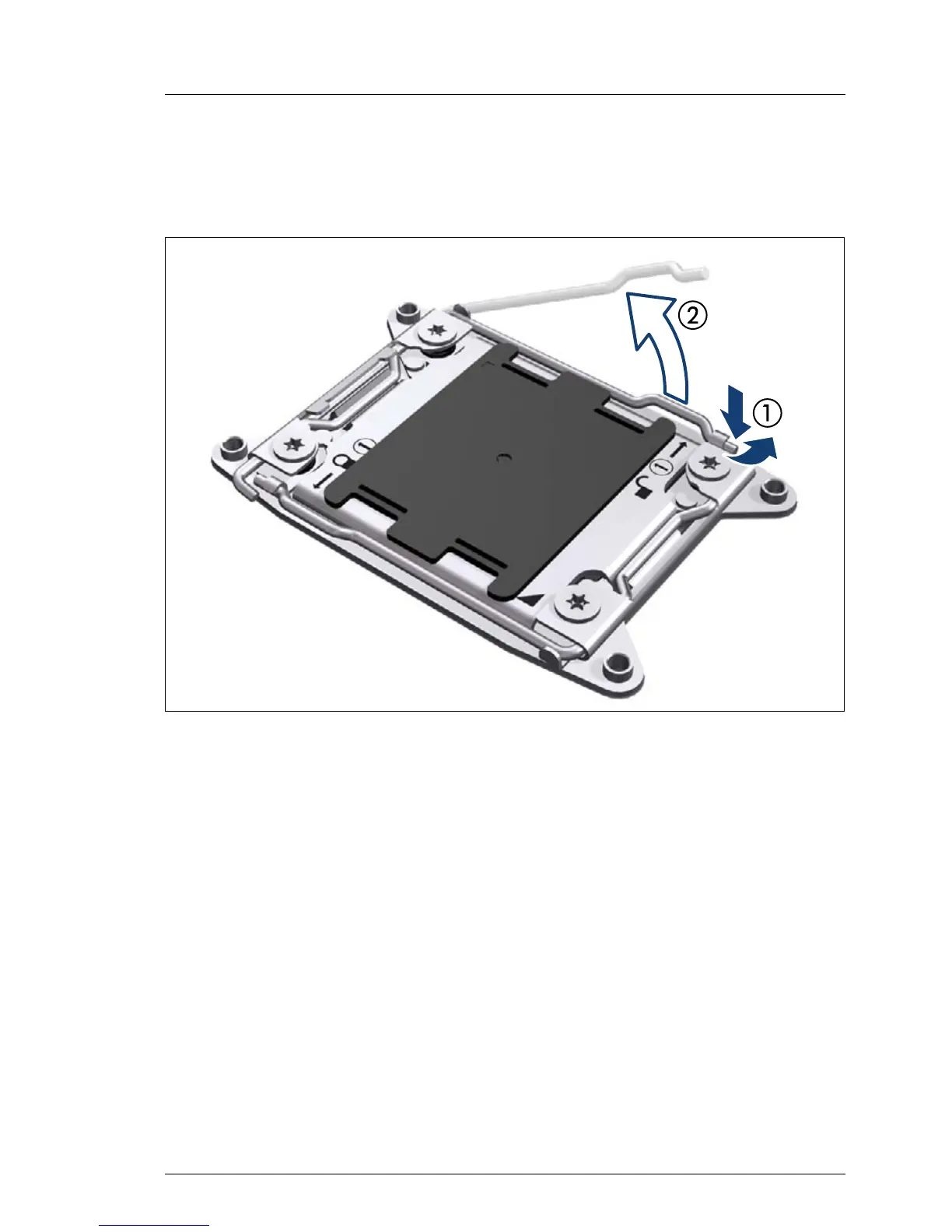

Figure 541: Opening socket release lever 1 (new system board)
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever will slightly lift up (2).
