System board and components

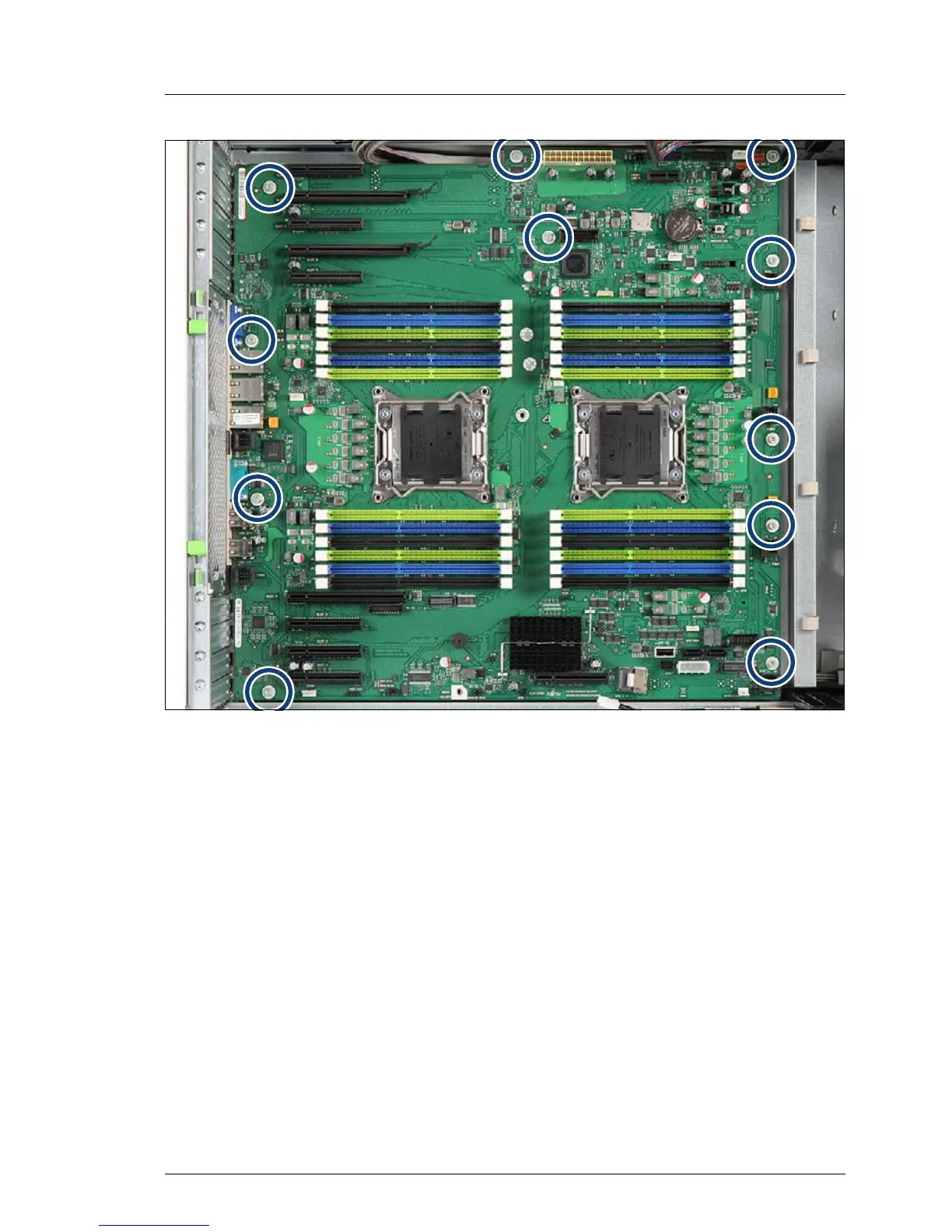

Figure 539: Securing the system board (A)
Ê Secure the system board with eleven screws (M3 x 6 mm, C26192-Y10-
C68) (see circles).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
