TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 227
Hard disk drives / solid state drives

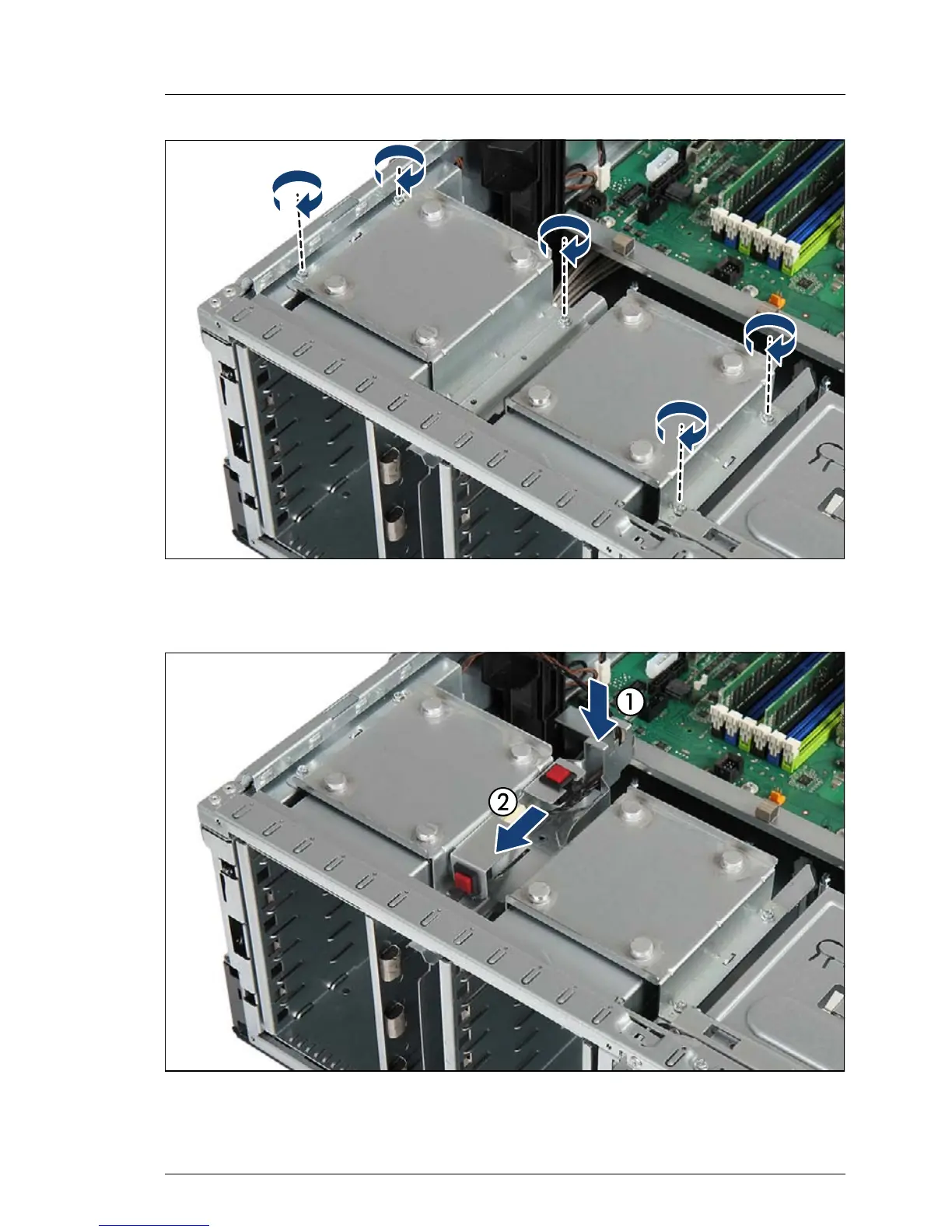

Figure 129: Mounting the 2.5-inch HDD bay top cover (B)
Ê Secure the HDD bay top cover to the chassis with five M3 x 4.5 mm screws.
Figure 130: Installing the intrusion switch holder (A)
Ê Place the intrusion switch holder on the HDD bay top cover as shown (1).
