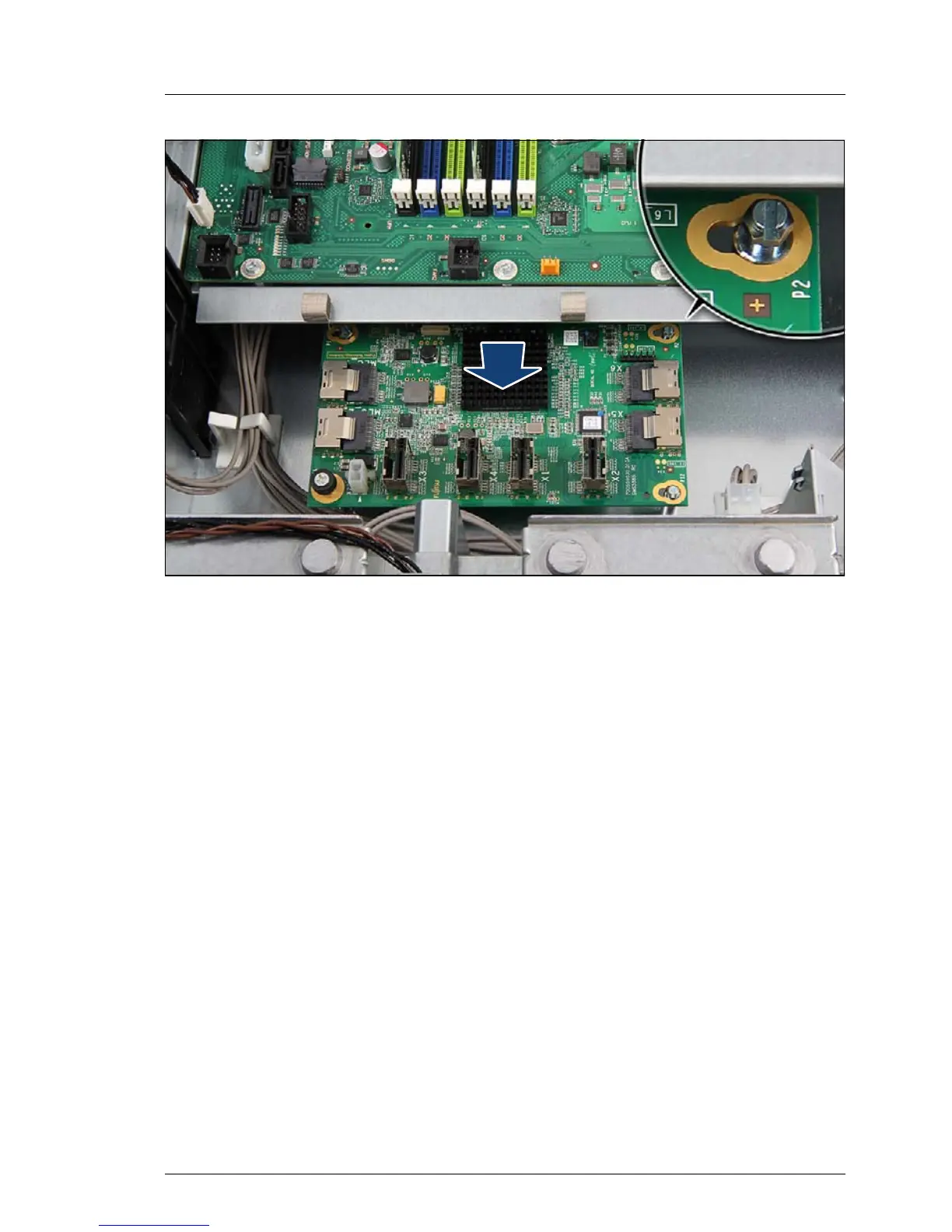

Figure 210: Installing the SAS expander board (A)
Ê Ensure that the four expander board spacer bolts have been installed in the
chassis as described in section "Installing SAS expander board spacer
bolts" on page 310.
Ê Insert the SAS expander board into the chassis so that the three shoulder
screw caps on the spacer bolts rest in the wide ends of the keyhole slots on
the expander board (see close-up).
