Fujitsu PRIMERGY RX350 S8

458 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Expansion cards and backup units

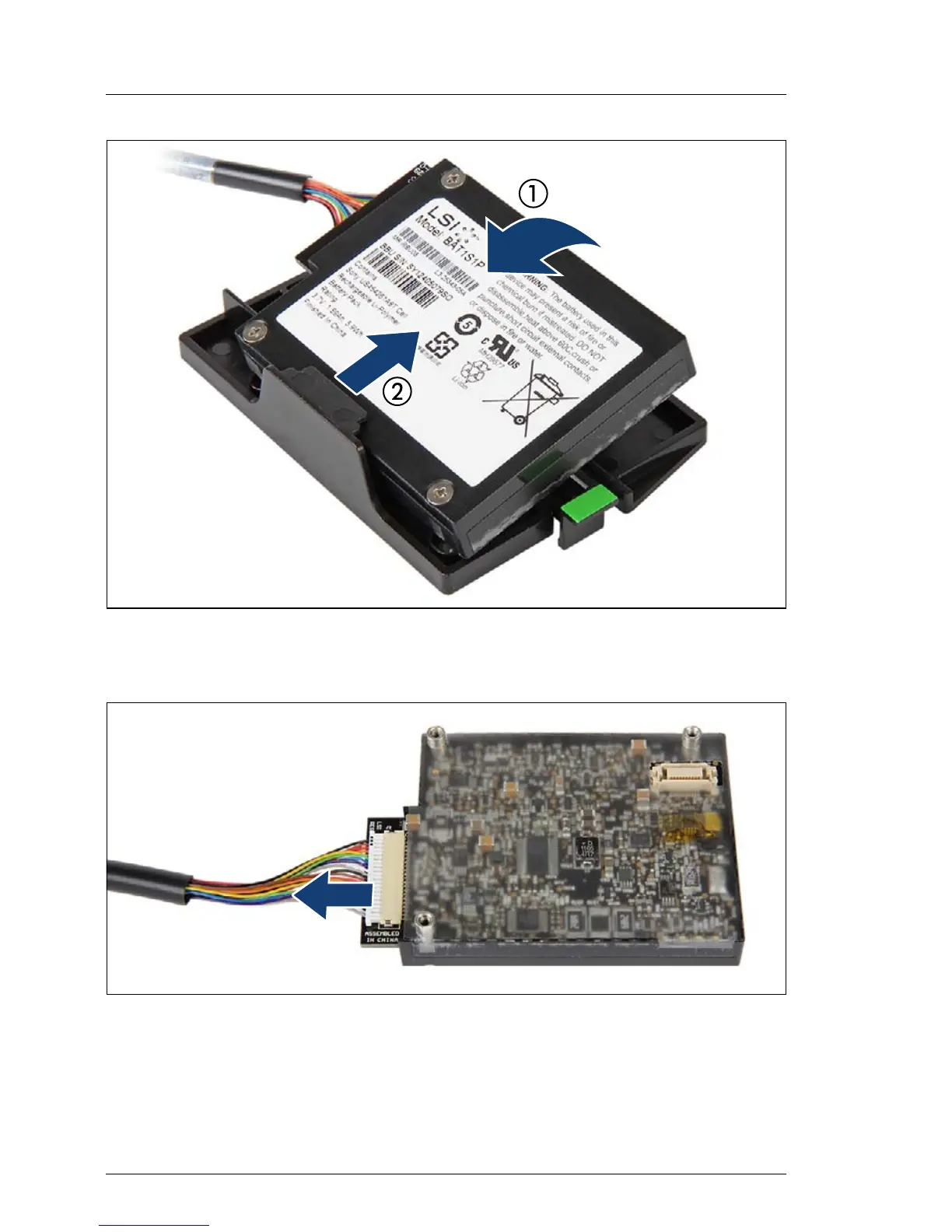

Figure 351: Removing the BBU from the BBU holder (B)
Ê Fold up the BBU (1) and at a slight angle remove it from the BBU holder (2).
Figure 352: Disconnecting the BBU cable from the BBU
Ê Carefully disconnect the BBU cable from the BBU.
