Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 187
Hard disk drives / solid state drives
Out-of-Band cabling
I This step only applies to SAS configurations involving SAS 3.0
backplanes and SAS 2.0 RAID controllers D2616 or D2607.

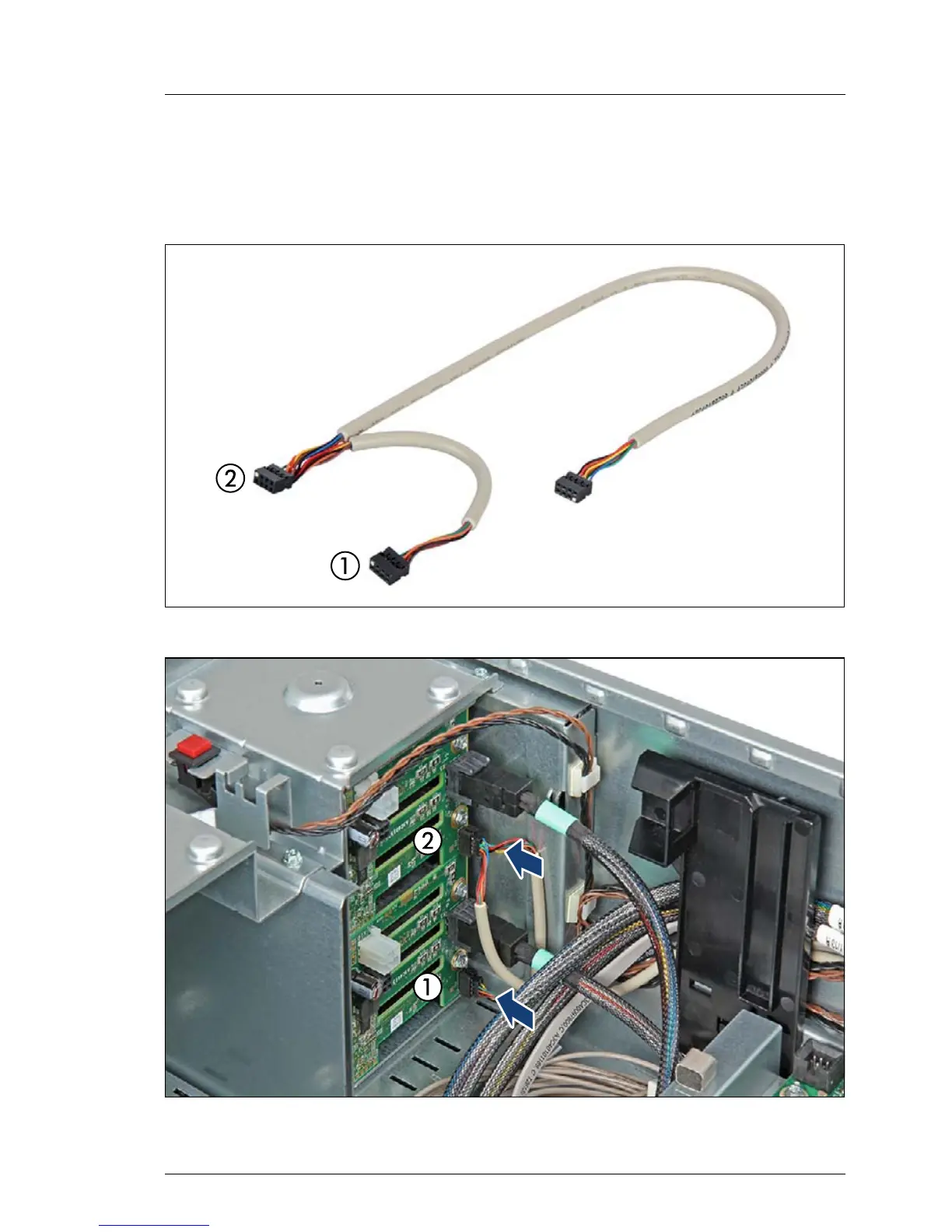

Figure 94: SAS 3.0 Out-of-Band cable T26139-Y4015-V601
Figure 95: SAS 3.0 Out-of-Band cabling (A)
