Ê Reconnect all cables to the power backplane:
Ê Fold and run the cables through the cable clamps on the server floor as
shown (see close-up).
Figure 90: Cabling the power backplane (B)

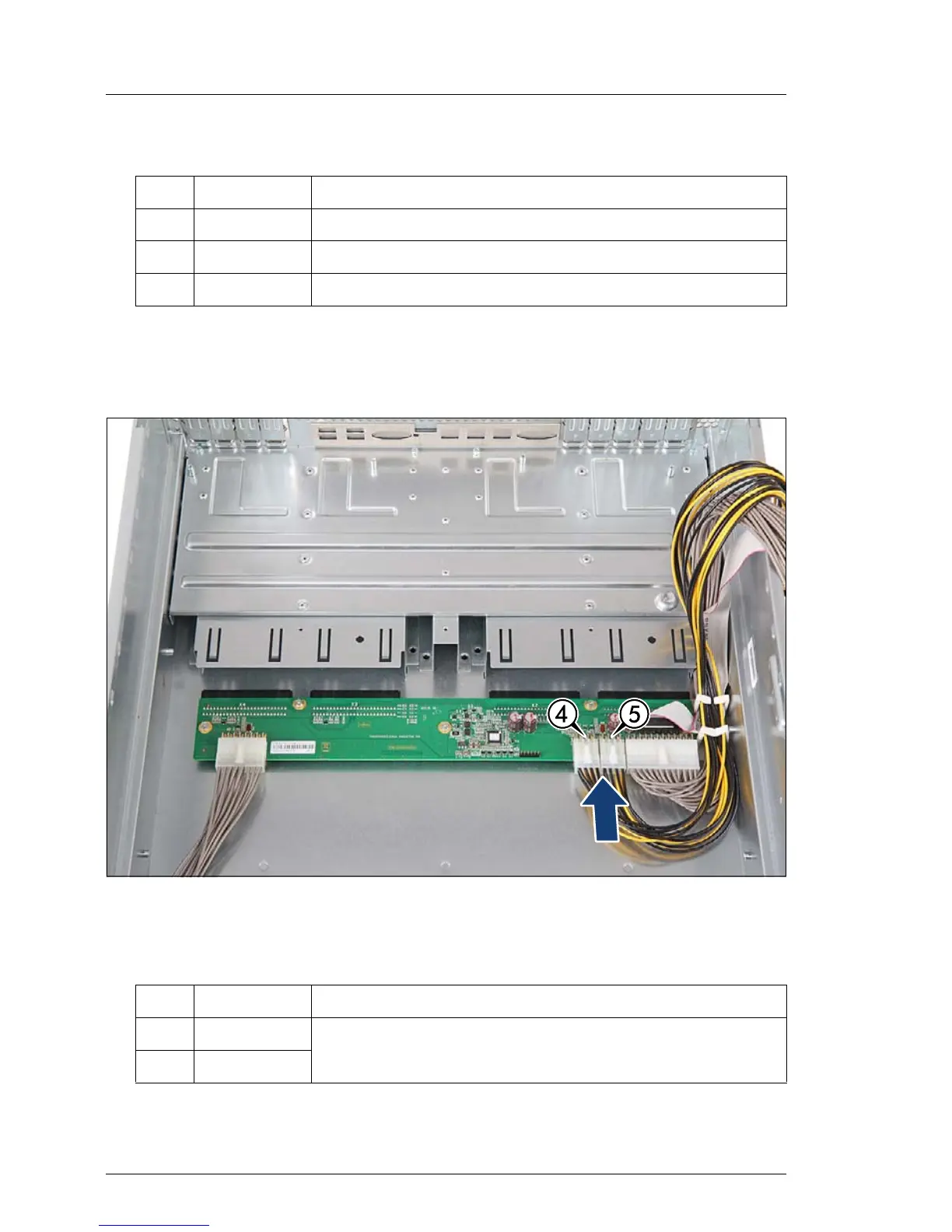

Ê If applicable, reconnect the GPGPU card power cables to the power
backplane:
# Connector Cable
1 X21 Power cable T26139-Y3952-V601
2 X20 System power cable T26139-Y3758-V9
3 X25 PSU signal cable T26139-Y4027-V1
# Connector Cable
4 X22
GPGPU card power cable T26139-Y3946-V701
5 X23
