Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 209
Hard disk drives / solid state drives

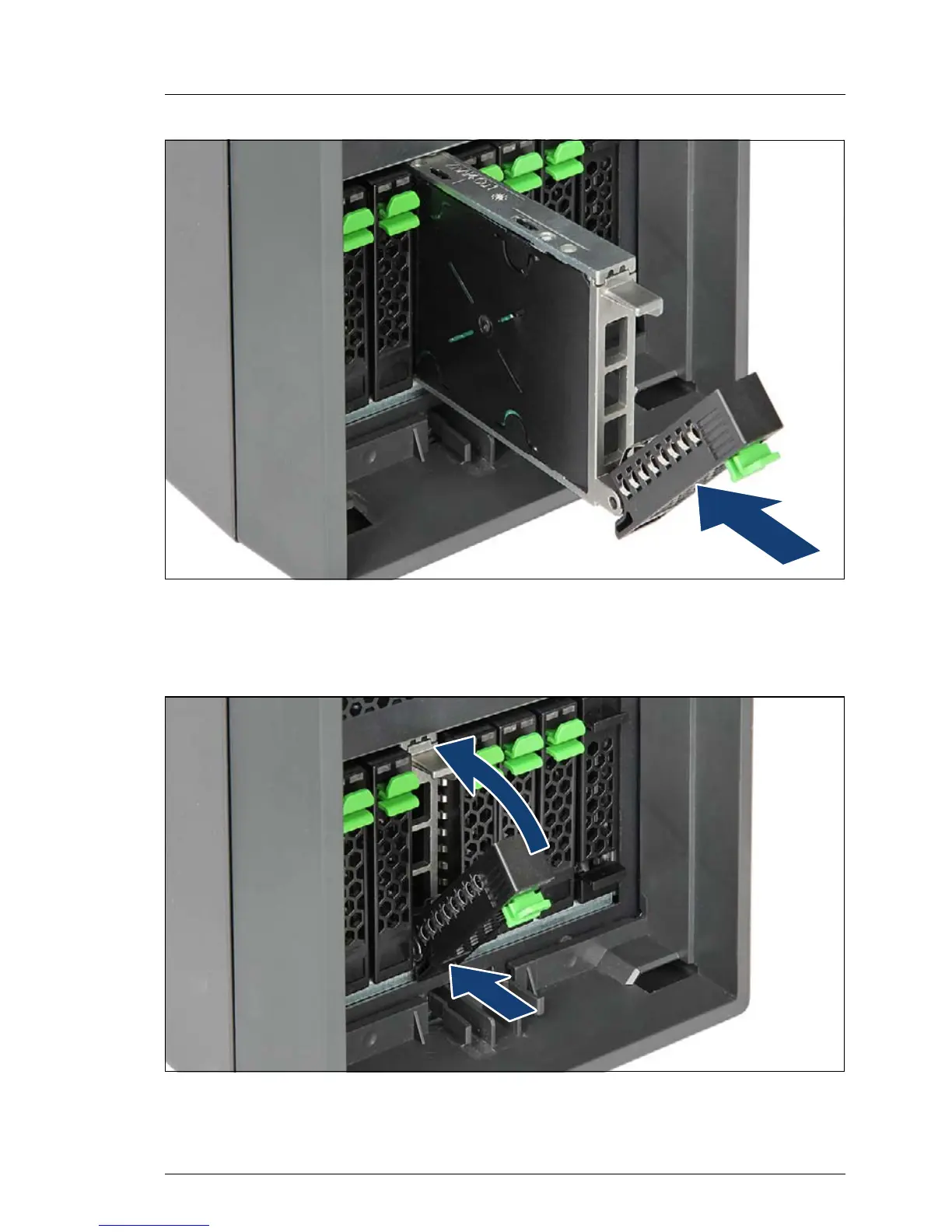

Figure 110: Inserting the 2.5-inch HDD / SSD module
Ê Insert the HDD / SSD module into a drive bay and carefully push back as far
as it will go.
Figure 111: Closing the 2.5-inch HDD / SSD module locking lever
Ê Close the locking lever to lock the hard disk drive in place.
