Fujitsu PRIMERGY RX350 S8

218 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives

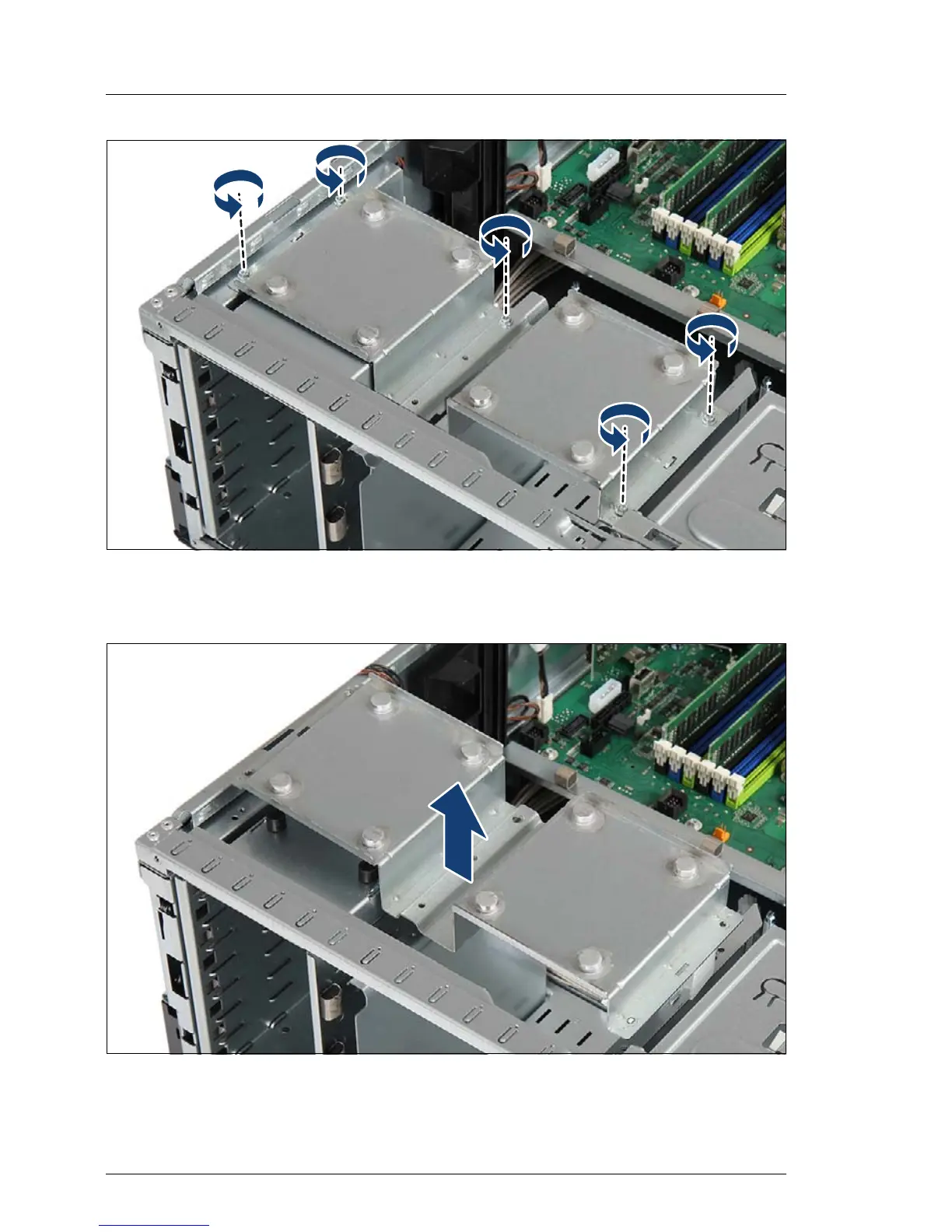

Figure 117: Removing the 2.5-inch HDD bay top cover (A)
Ê Remove five screws from the 2.5-inch HDD bay top cover.
Figure 118: Removing the 2.5-inch HDD bay top cover (B)
Ê Remove the 2.5-inch HDD bay top cover from the chassis.
