222 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives

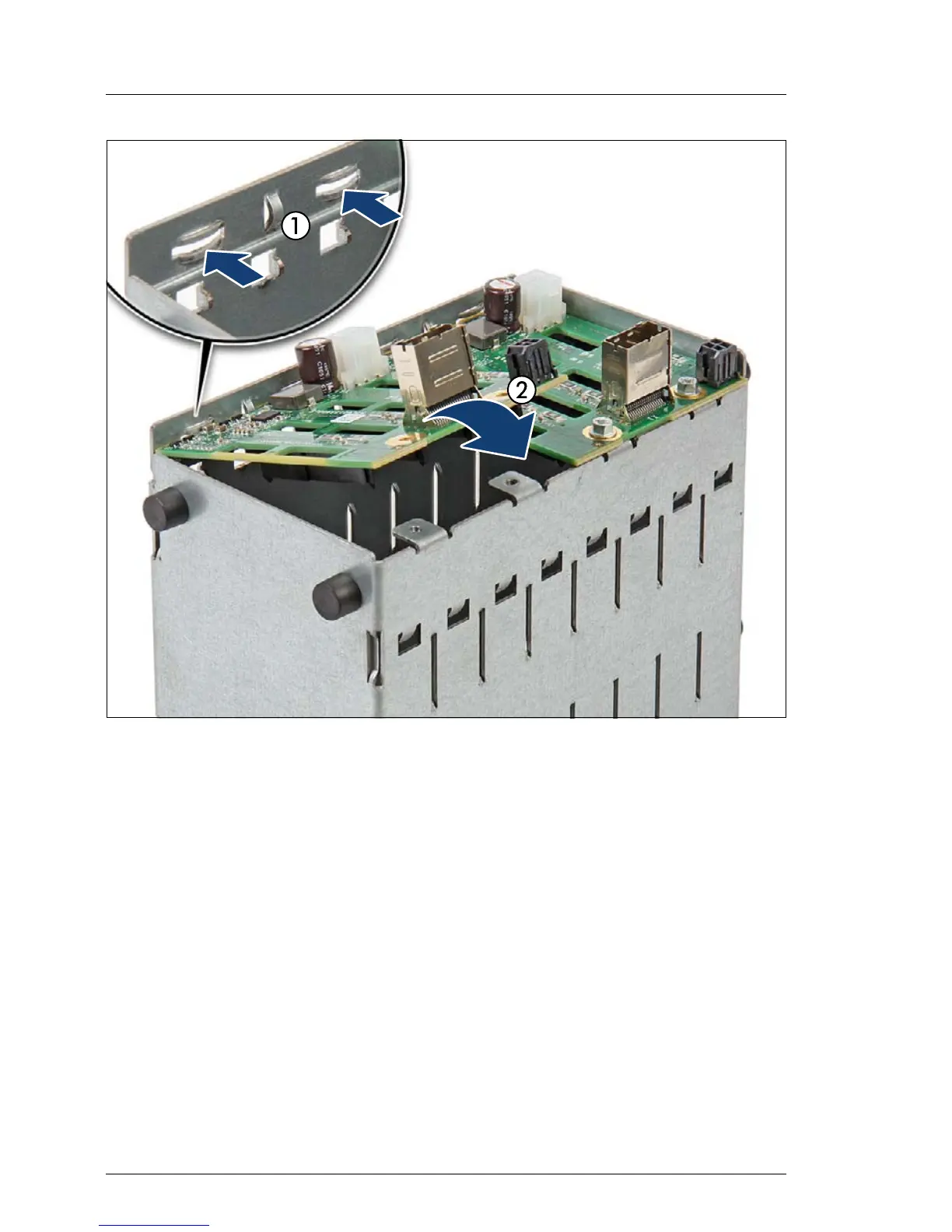

Figure 124: Mounting the new 2.5-inch HDD / SSD SAS backplane (A)
Ê At a slight angle, fit the new 2.5-inch HDD SAS backplane into the two
guides on the HDD cage (1, see close-up).
Ê Fold down the 2.5-inch HDD SAS backplane (2).
