Fujitsu PRIMERGY RX350 S8

232 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives
Ê Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
Ê Remove the intrusion switch holder (2) and set aside.
Ê Leave the intrusion switch cable connected to the system board.

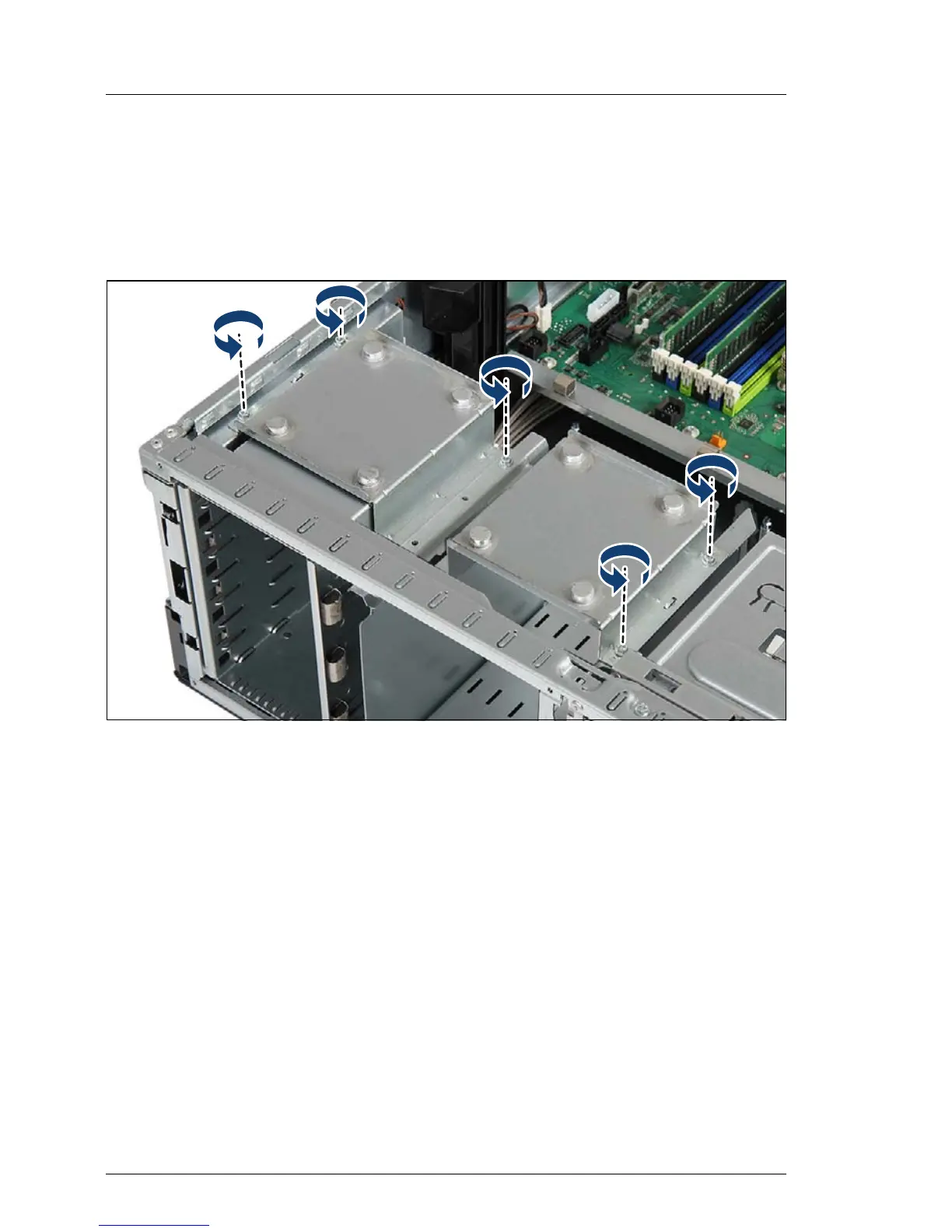

Figure 135: Removing the 2.5-inch HDD bay top cover (A)
Ê Remove five screws from the 2.5-inch HDD bay top cover.
