Ê Fit the HDD backplane into the guide on the outer wall of the HDD bay (see
close-up) and lower it into the bottom rim.

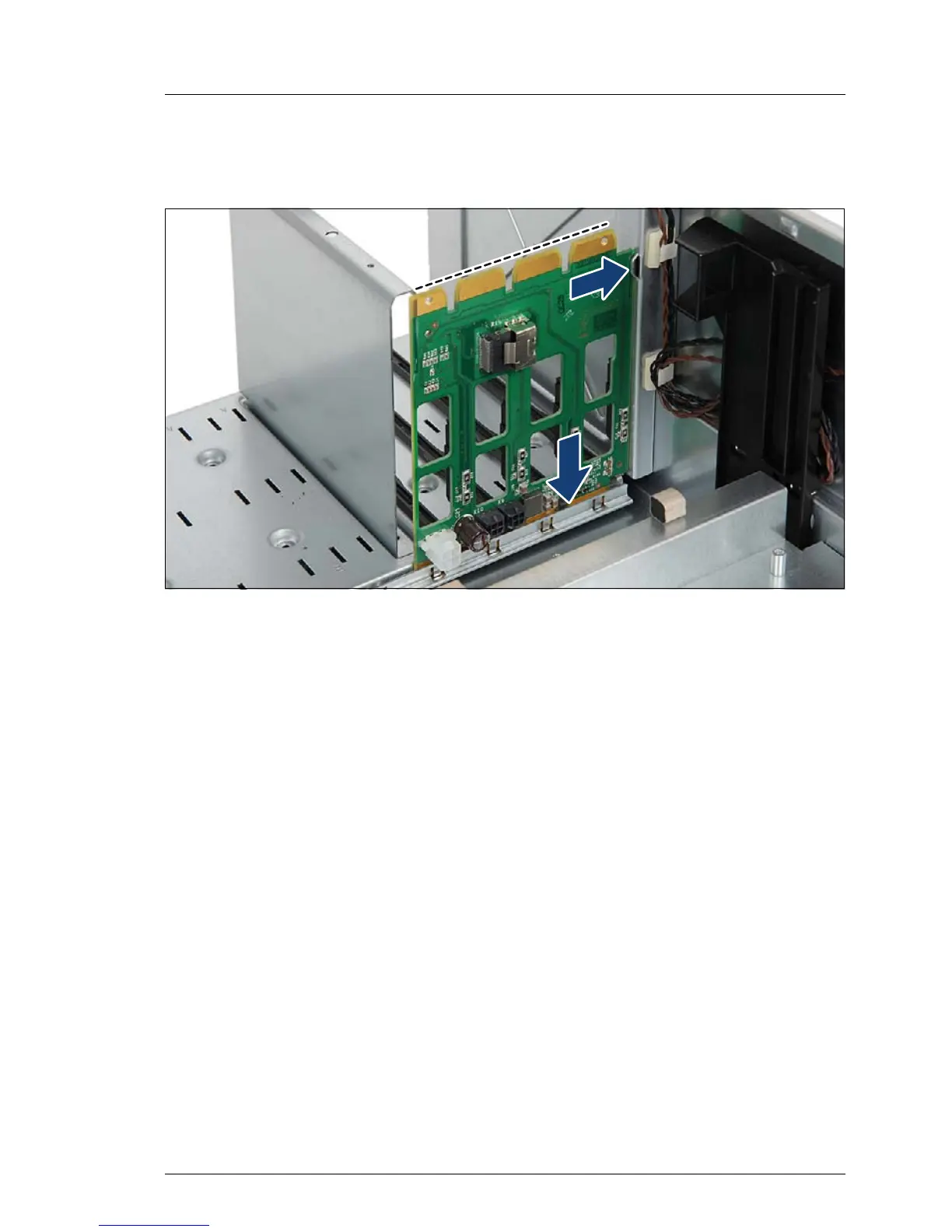

Figure 174: Mounting the new 4x 3.5-inch HDD SAS backplane
Ê Ensure that the 4x 3.5-inch HDD SAS backplane is properly seated in the
into the bottom rim and side guide (see arrows).
Ê Ensure that the upper edge of the SAS backplane is flush with the HDD bay
divider wall (see dashed line).
