Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 275
Hard disk drives / solid state drives

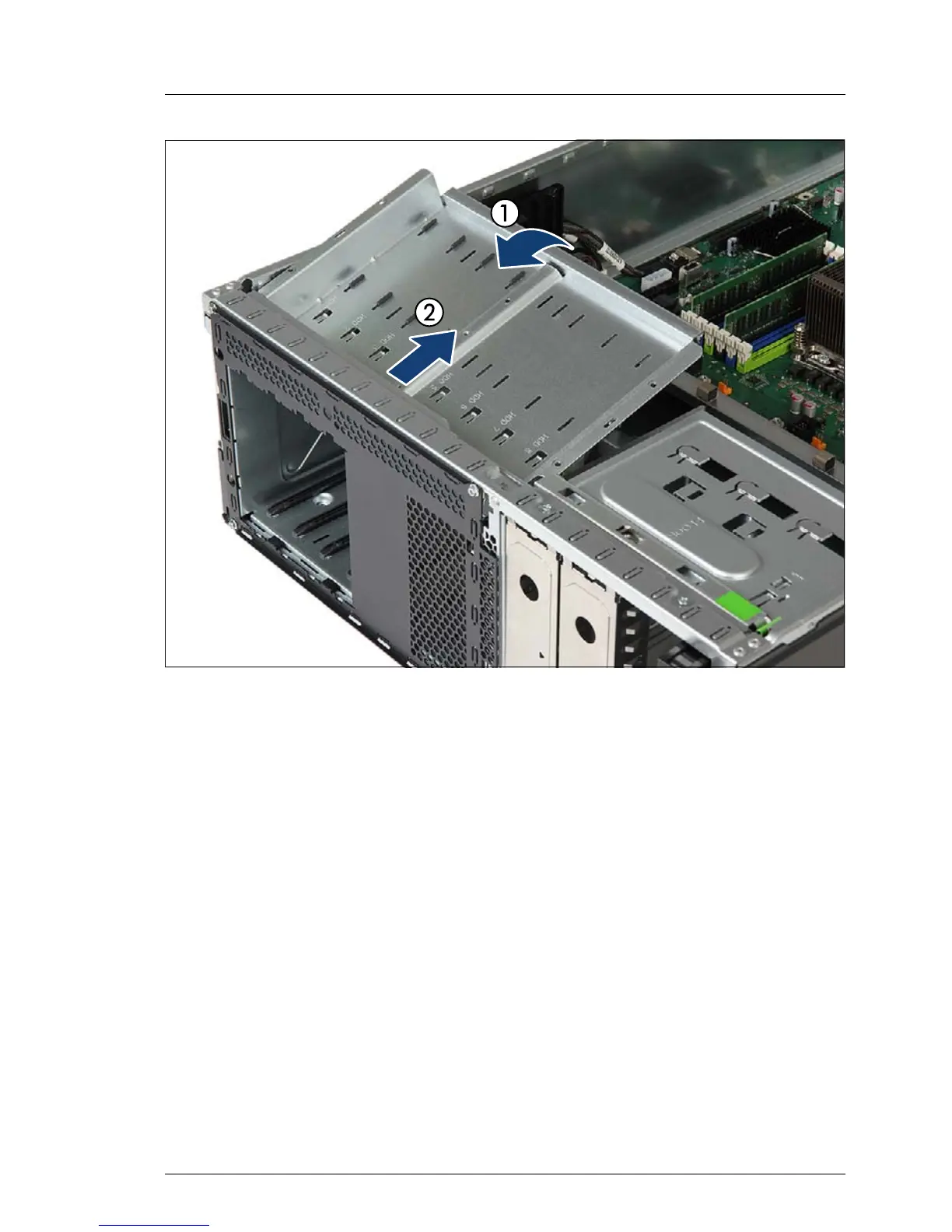

Figure 180: Removing the 3.5-inch HDD bay top cover (C)
Ê Carefully fold up the 3.5-inch HDD bay top cover to disengage it from the
SAS backplane below (1).
Ê Remove the 3.5-inch HDD bay top cover from the chassis (2).
