Ê Locate the three hooks on the HDD front panel (see close-up and black
numbers 1-3).
Ê Locate the corresponding installation slots on the server front (see white
numbers 1-3).
Ê Fit the three hooks on the HDD front panel into the slots in the server front.

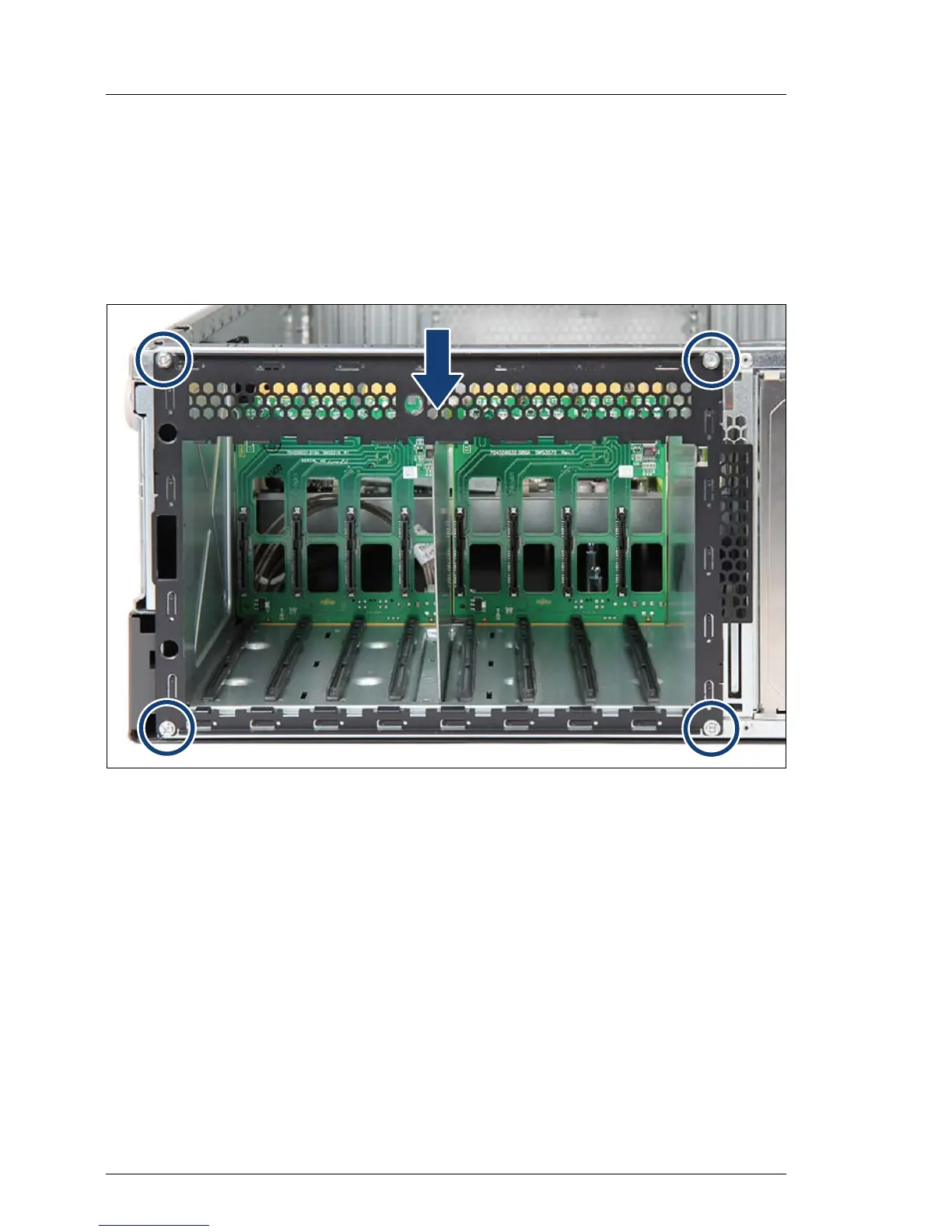

Figure 188: Securing the 8x 3.5-inch HDD front panel
Ê Firmly press down on the HDD front panel until its upper edge is flush with
the chassis (see arrow).
Ê Secure the HDD front panel to the server front with four M3 x 4.5 mm screws
(see circles).
