Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 355
Expansion cards and backup units

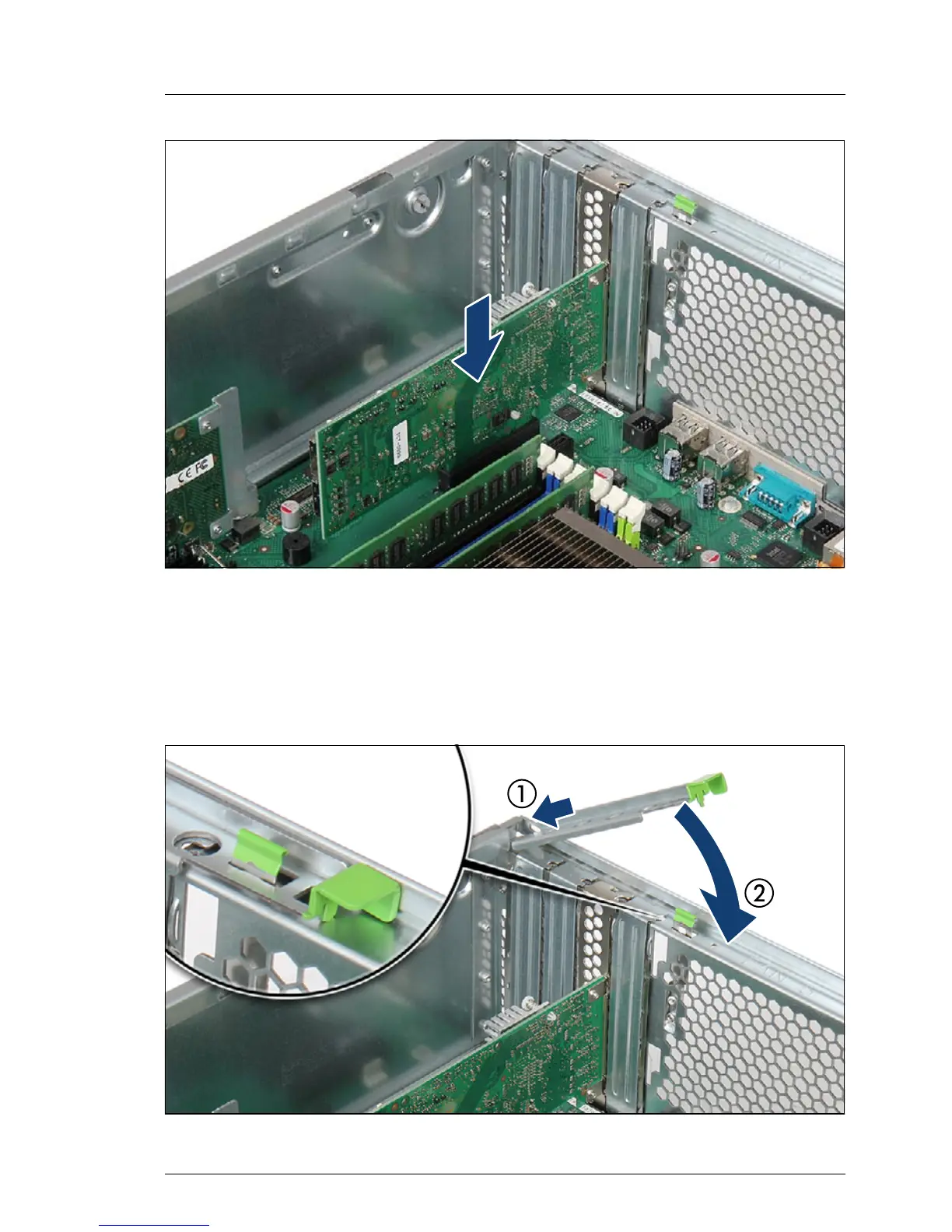

Figure 242: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
I For slot preferences, please refer to section "Basic information" on
page 346.
Figure 243: Securing the expansion card
