Fujitsu PRIMERGY RX350 S8

420 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Expansion cards and backup units

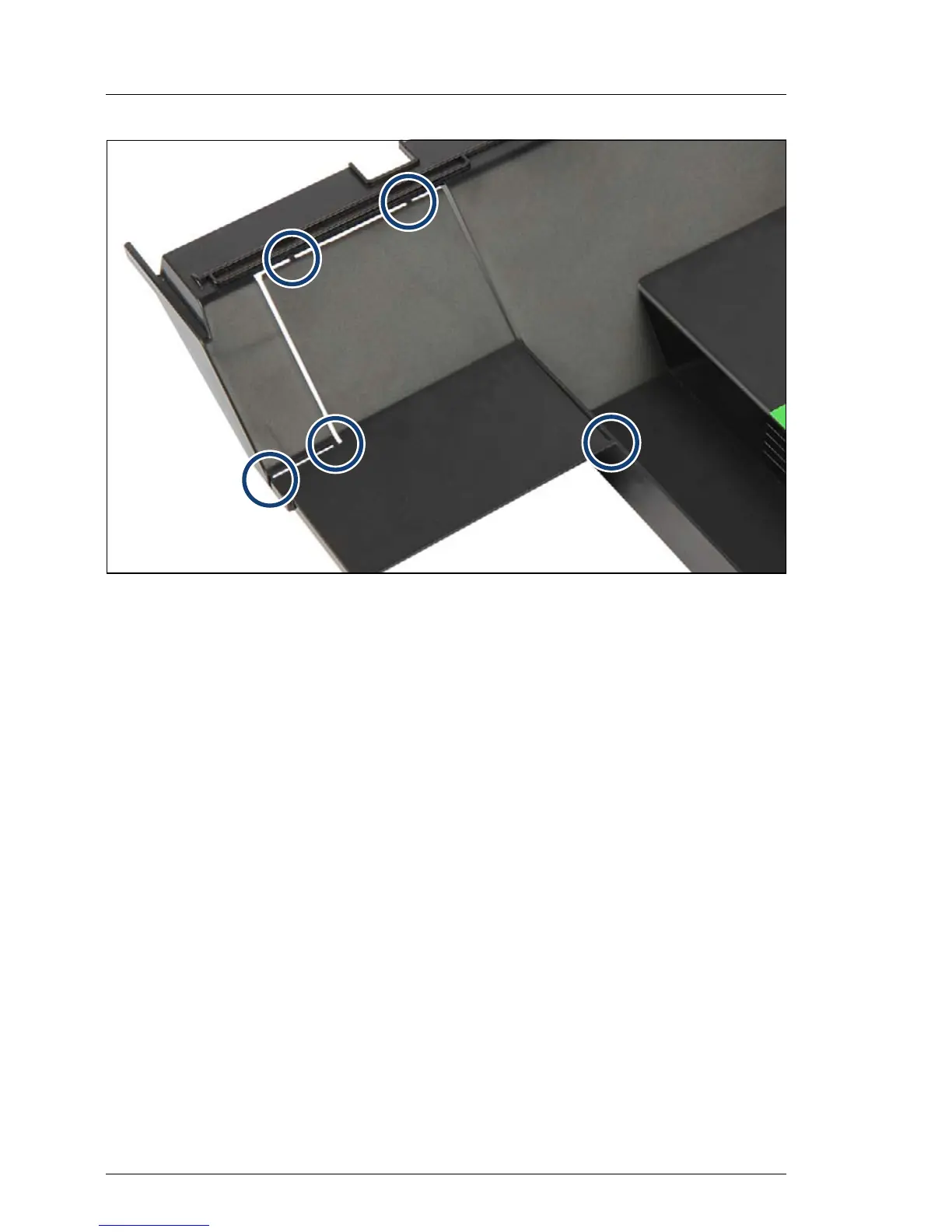

Figure 316: Breaking out the GPGPU card blind cover (A)
Ê If applicable, break out the blind cover from the system air duct (see circled
joints).
I The blind cover has already been removed in case of the system air
duct contained in the GPGPU kit.
