Ê Fit the two spacer bolts on the SAS RAID controller as shown and secure
each with a screw from the TFM kit.

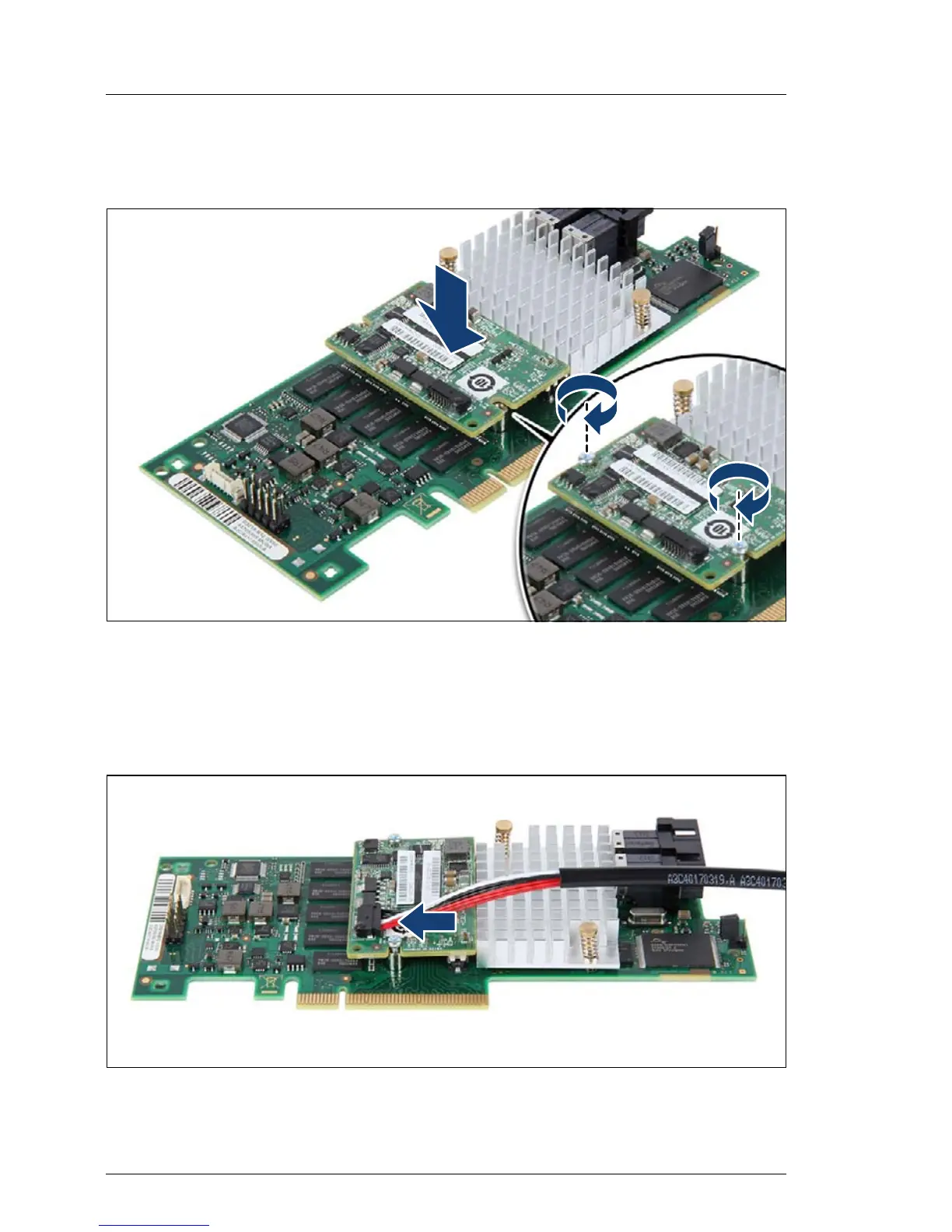

Figure 340: Mounting the TFM module (B)
Ê Attach the TFM module to the RAID controller as shown.
Ê Secure the TFM module on the spacer bolts with two screws from the TFM
kit.
Figure 341: Mounting the TFM module (C)
Ê Connect the FBU adapter cable (T26139-Y4031-V103) to the TFM module.
