TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 465
Expansion cards and backup units

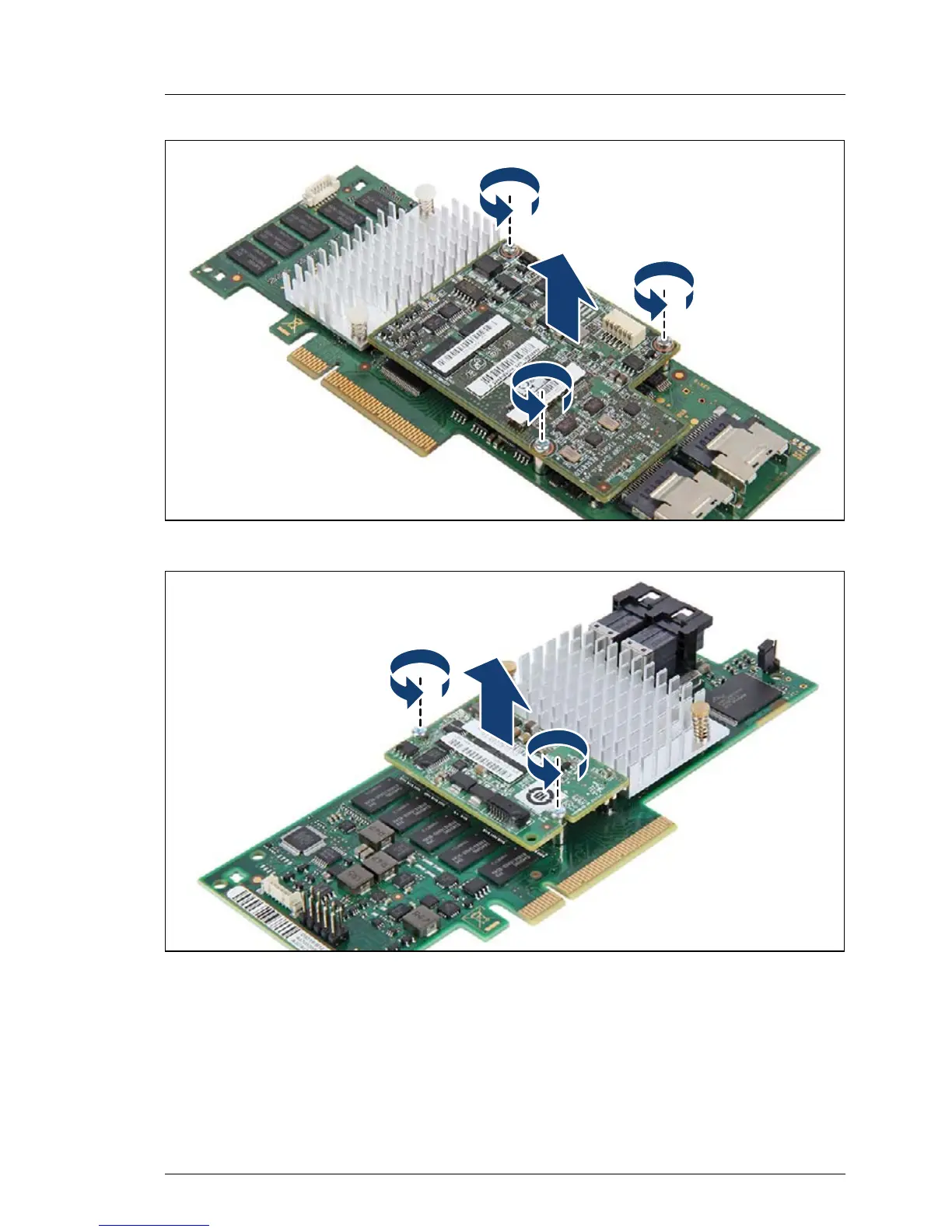

Figure 357: Removing the TFM module (RAID controller D3116)
Figure 358: Removing the TFM module (RAID controller D3216)
Ê Remove the upper screws from TFM spacer bolts.
Ê Remove the TFM module from the SAS RAID controller.
I Leave the TFM spacer bolts on the SAS RAID controller.
