Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 493
Processors

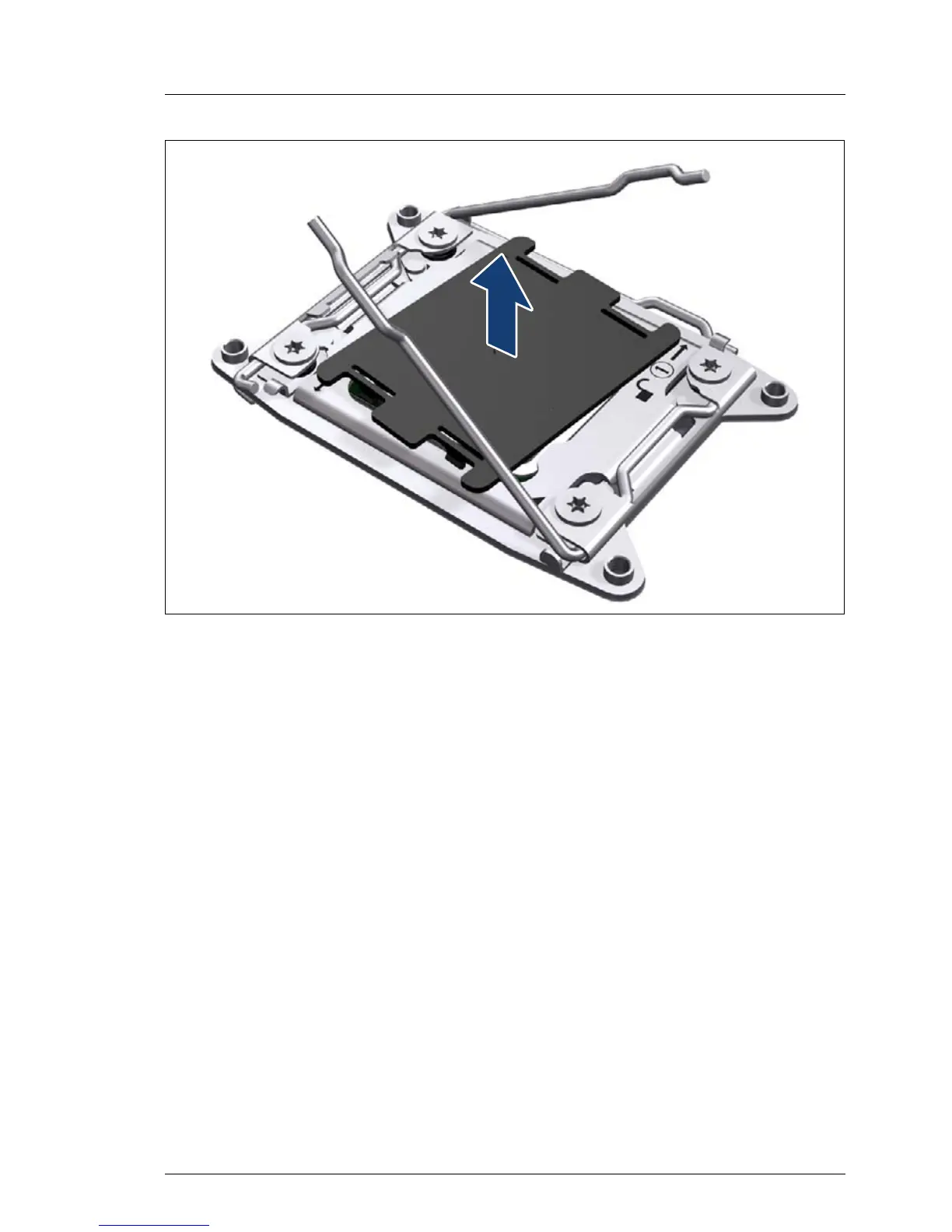

Figure 372: Removing the protective socket cover
Ê When closing the load plate, the protective socket cover will automatically
detach.
Ê Remove the socket cover and save it for future use.
V CAUTION!
Always replace the socket cover if you remove the processor from the
socket!
