Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 501
Processors

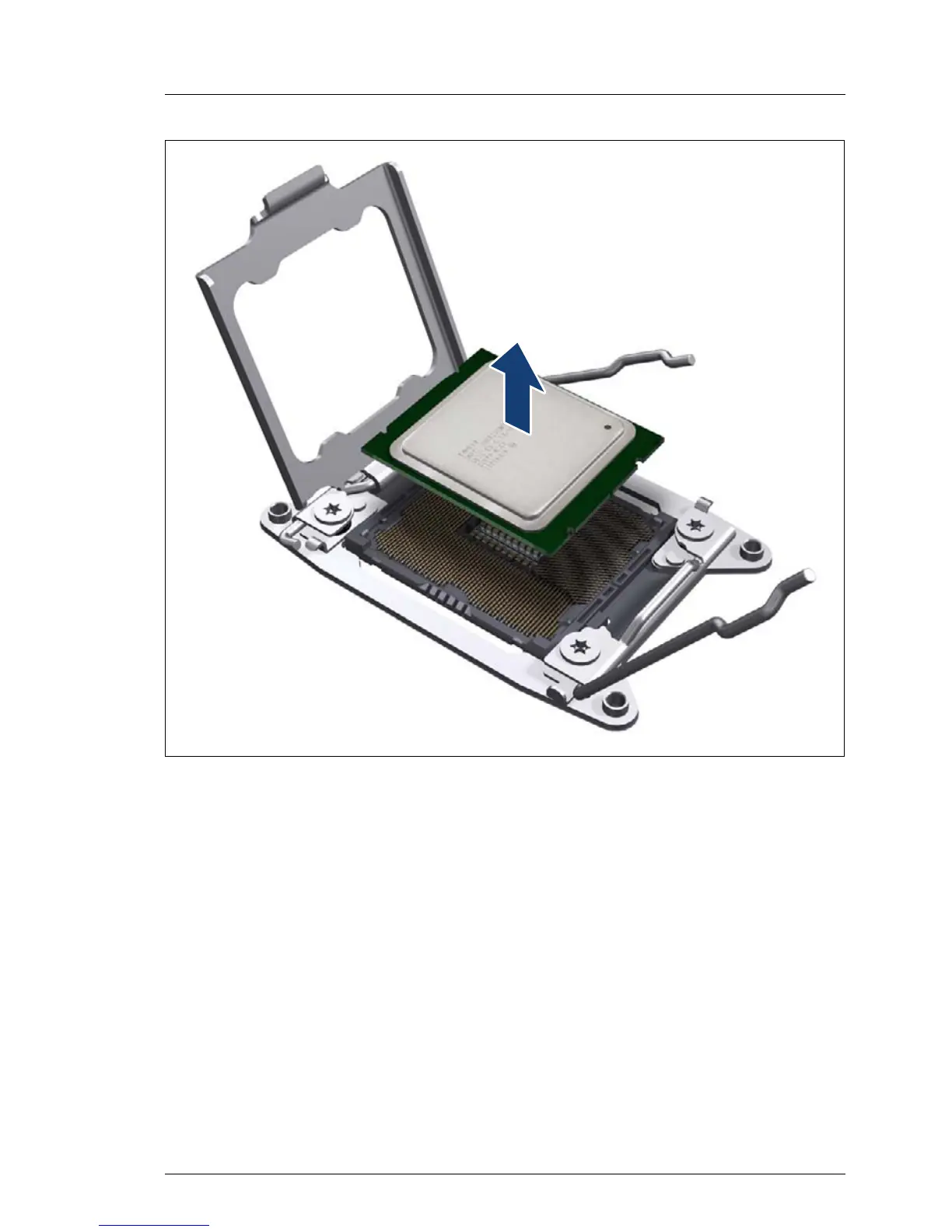

Figure 379: Removing the processor
Ê Carefully remove the defective processor from its socket in a vertical motion.
V CAUTION!
Be careful not to touch or bend the spring contacts on the processor
socket.
Ê Thoroughly clean residual thermal paste from the processor surface using a
lint-free cloth.
