Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 503
Processors

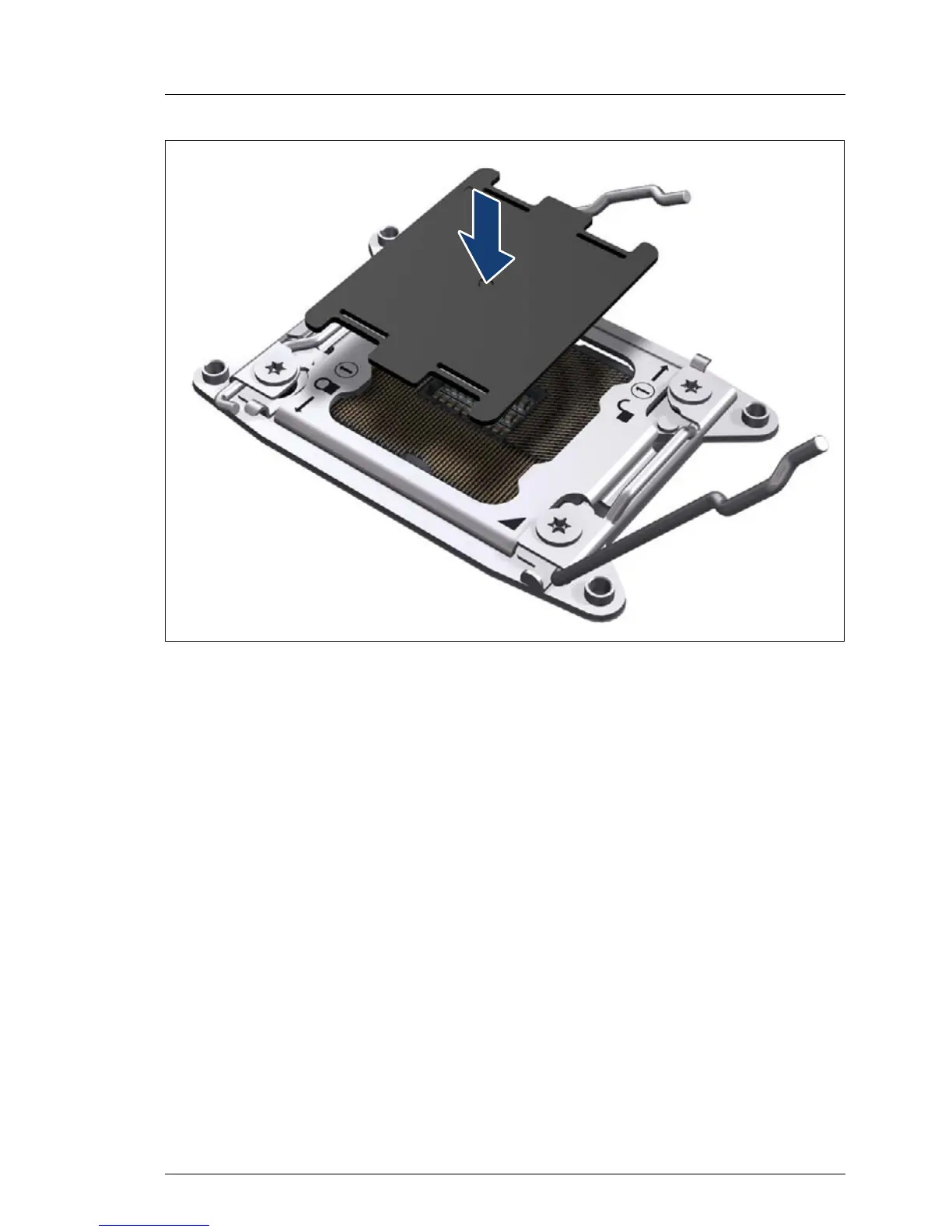

Figure 381: Attaching the protective socket cover (A)
Ê Carefully lower the protective socket cover onto the CPU socket in a vertical
motion until it snaps in place.
V CAUTION!
Always replace the socket cover if you remove the processor from the
socket!
