Ê Carefully seat the heat sink on the four threaded holes as shown (see close-
up).
V CAUTION!
– Ensure that the screws on the heat sink are properly seated on the
threaded holes.
– Ensure that the heat sink cooling fins match the direction of the
airflow!
Figure 398: Installing the heat sink (B)

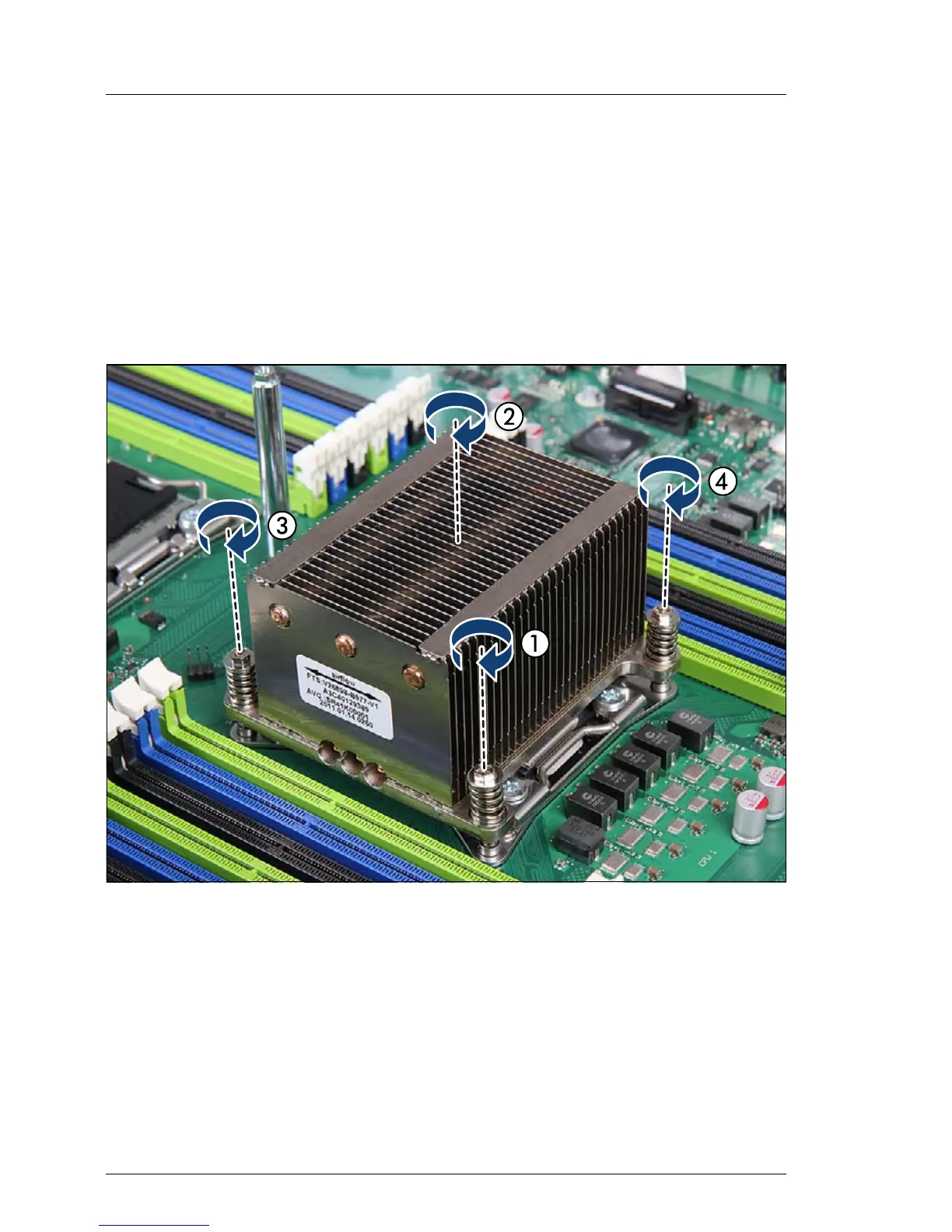

Ê Fasten the four captive screws on the heat sink in a crossover pattern
(screw torque: 1.0 Nm, not applicable for the Japanese market) (1-4).
