Ê Connect the SATA and power cables according to your configuration as
shown in the tables above.

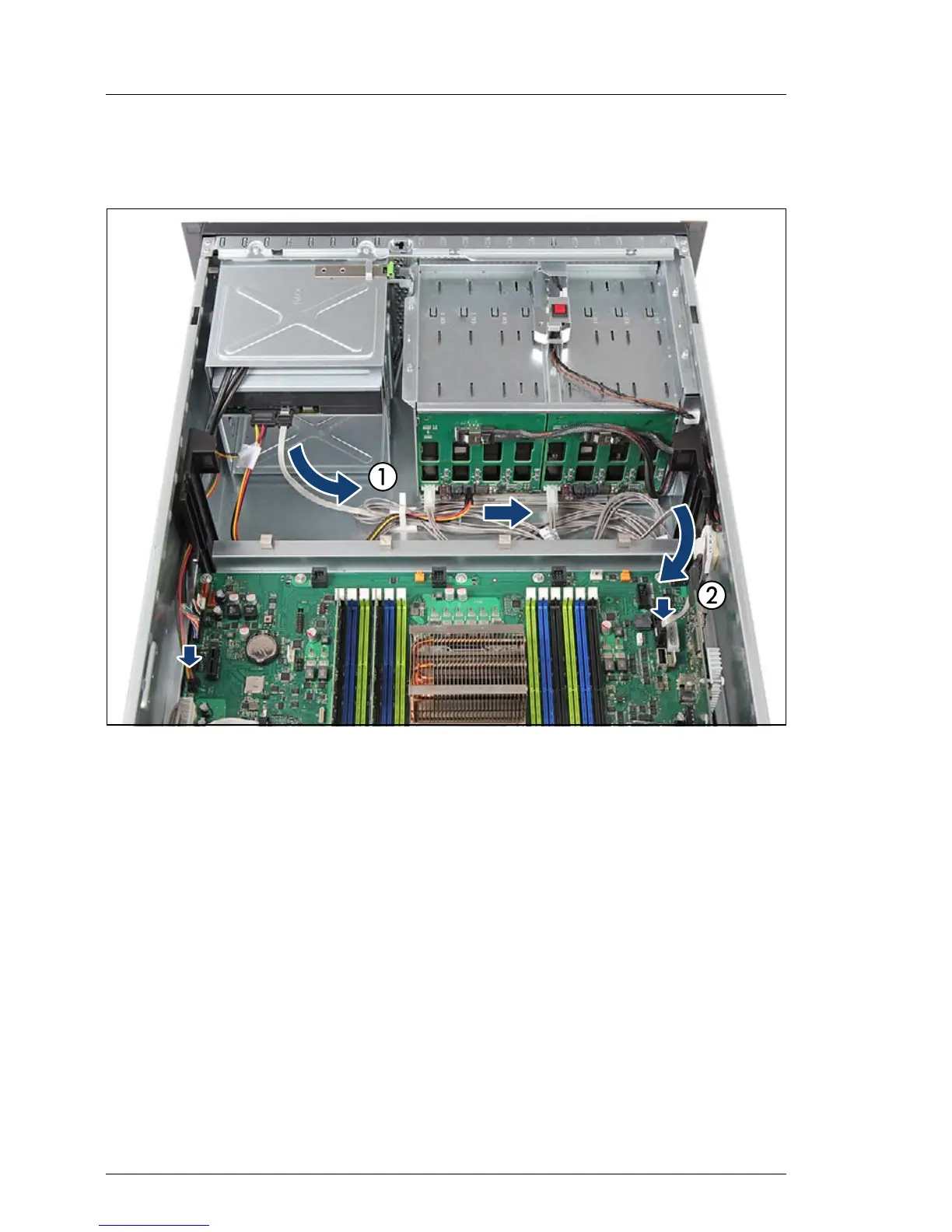

Figure 414: Routing cables
Ê Run SATA cable T26139-Y3958-V205 along the drive bays and through the
cable clamp on the server floor as shown (1).
Ê Run the SATA cable through the cable guide (2).
