Accessible drives

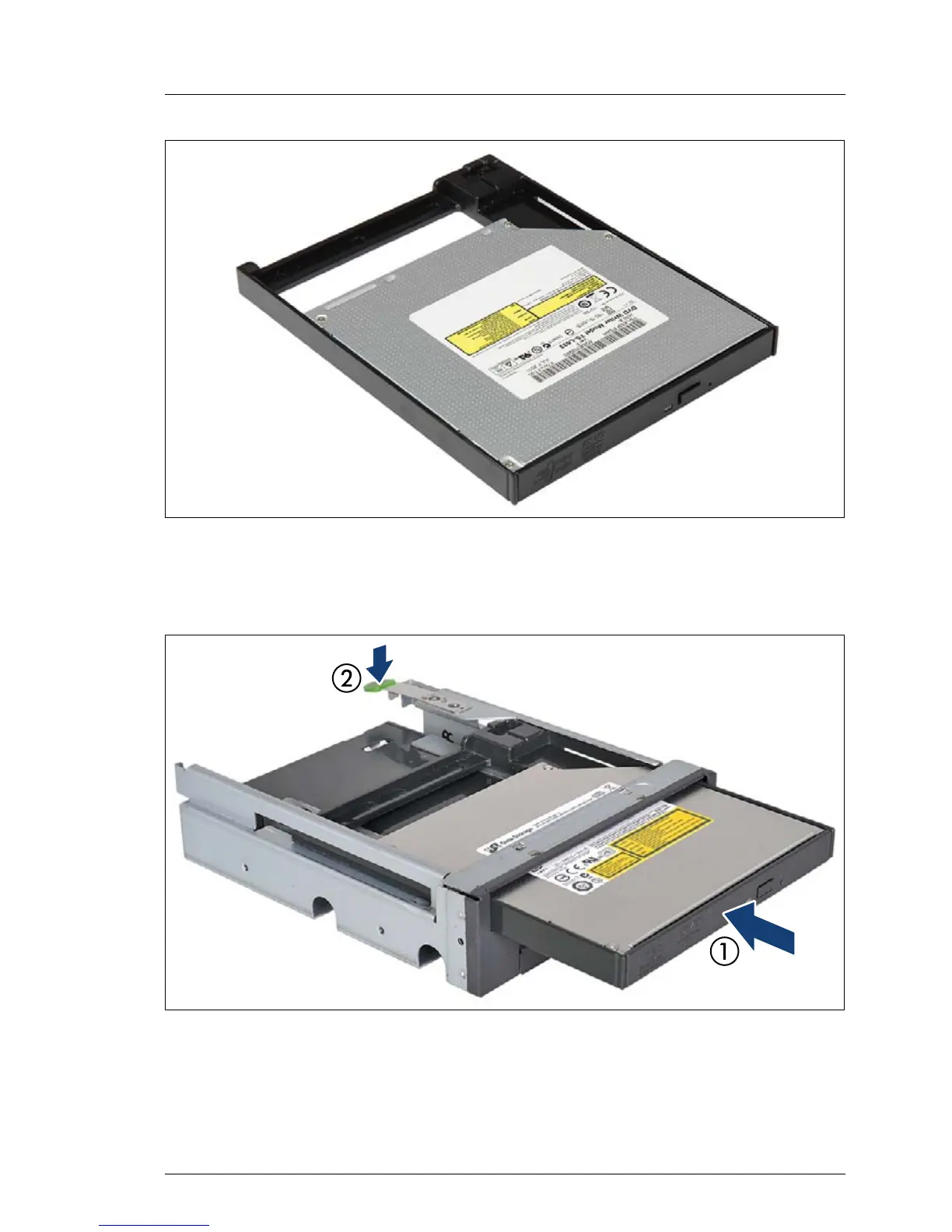

Figure 421: Mounting the slimline ODD in the installation frame (B)
Ê Ensure that the ODD is properly seated in the installation frame as shown
above.
Figure 422: Mounting the slimline ODD module in the Multibay box
Ê Insert the slimline ODD module into the Multibay box (1) and push back until
the locking tab (2) engages.
