Accessible drives

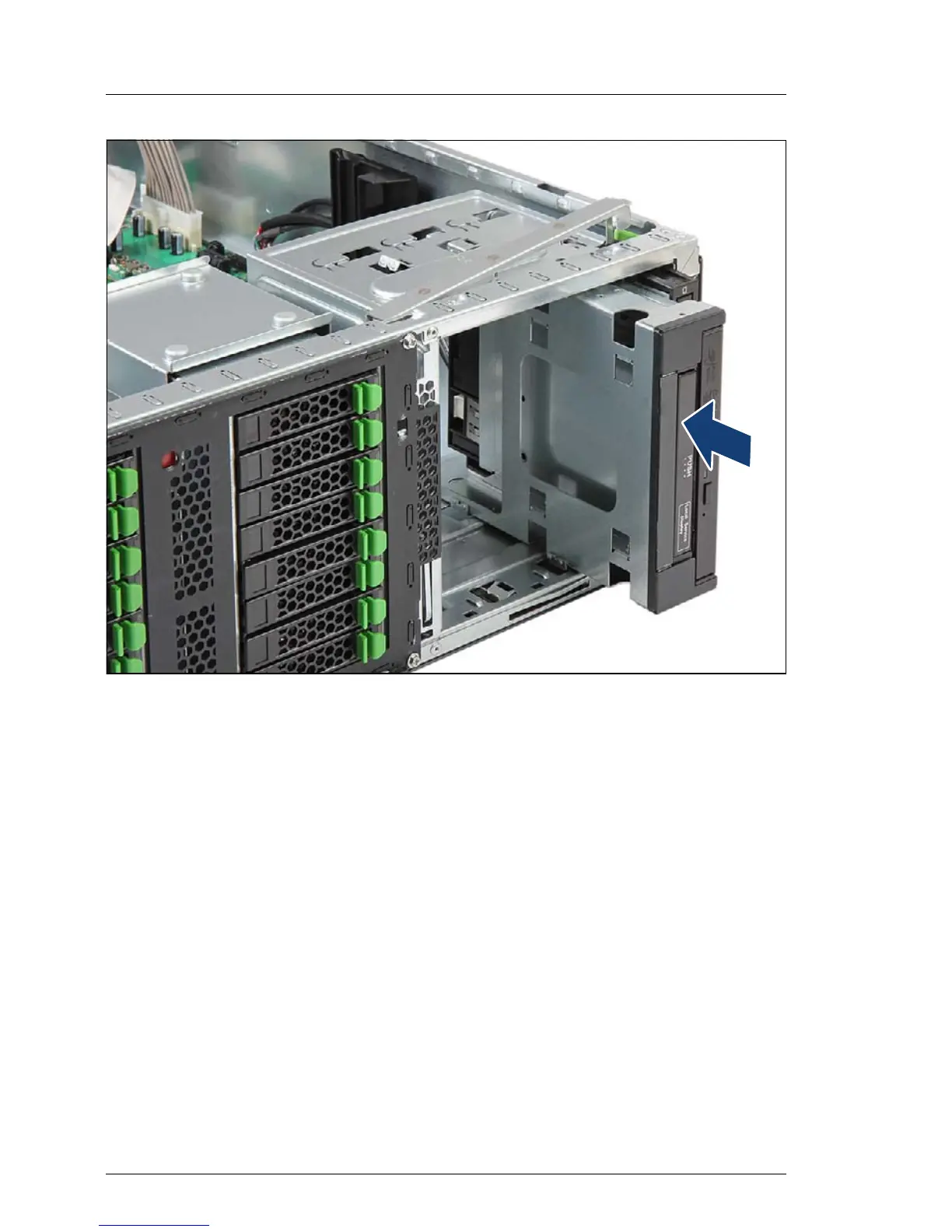

Figure 428: Multibay-Box einsetzen
Ê Insert the Multibay box into installation bay 1 and carefully push in until its
front screw hole lines up with the centering pin on the locking bar.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
