Accessible drives

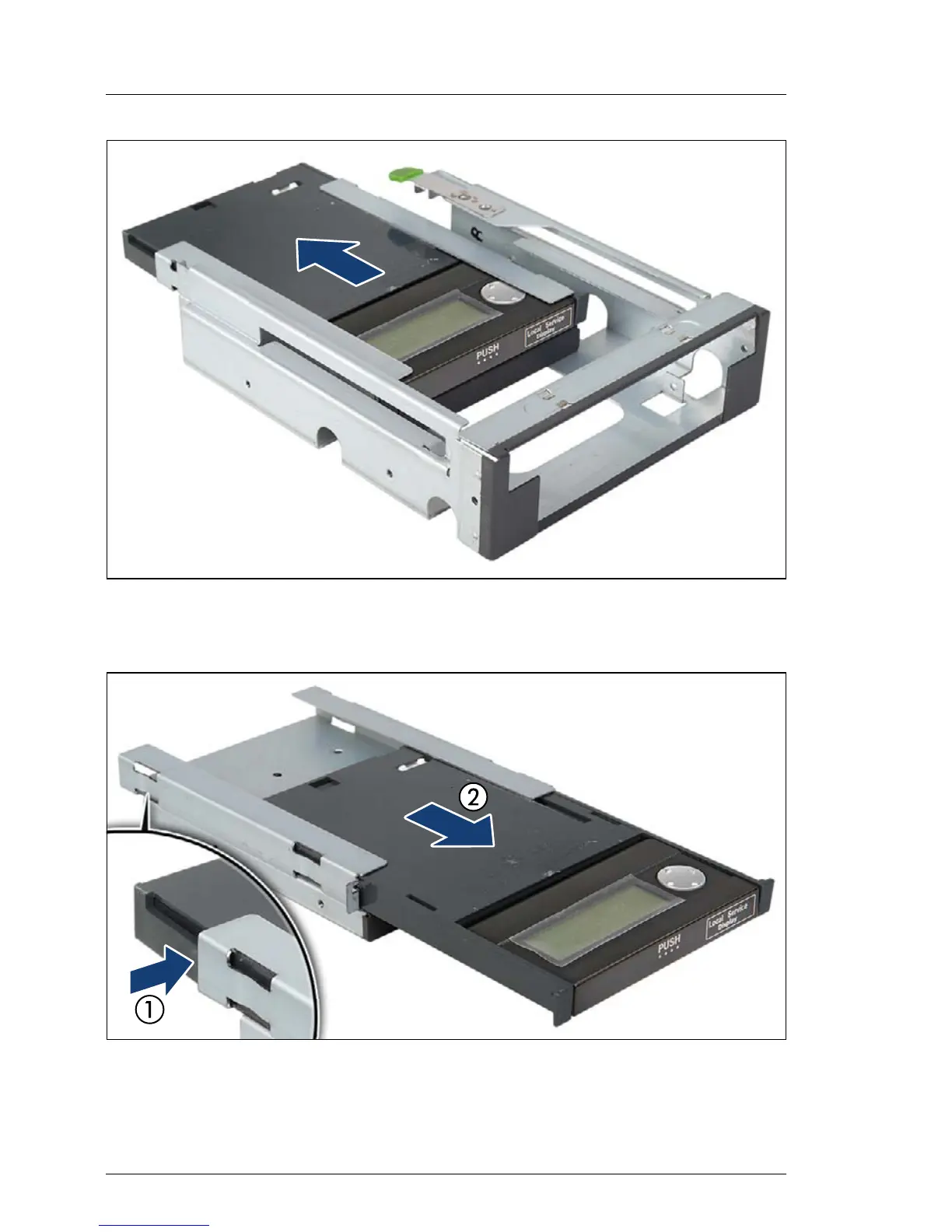

Figure 435: Removing the 3.5-inch installation frame from the Multibay box (B)
Ê Slide the 3.5-inch installation frame out of the Multibay box as shown.
Figure 436: Removing the LSD module from the 3.5-inch installation frame
Ê Press in on the locking latch (see close-up) to disengage the LSD module
(1).
