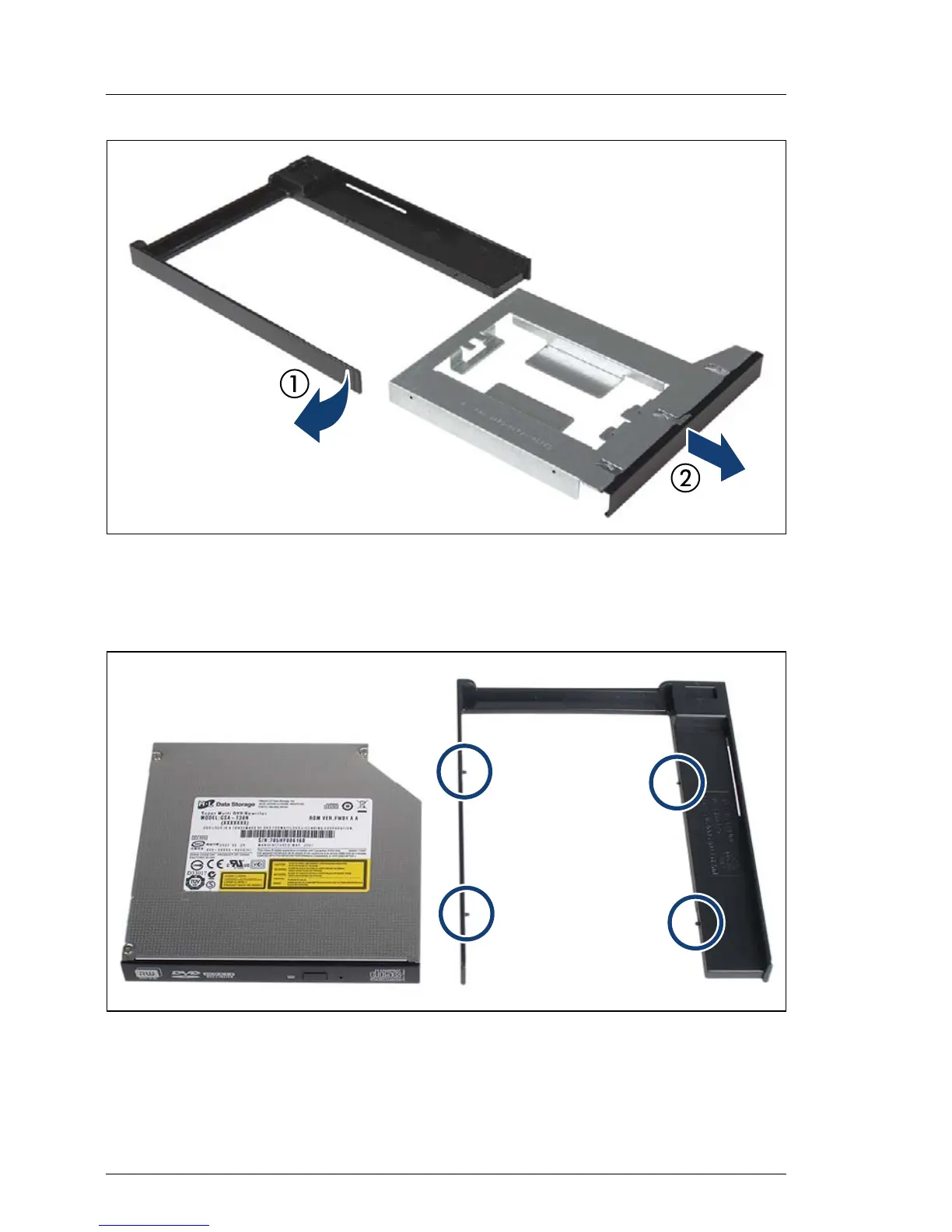

Figure 438: Disassembling the slimline ODD dummy module
Ê Disengage (1) and remove (2) the slimline ODD dummy insert (metal part)
from the slimline ODD installation frame (A3C40053093-R).
Figure 439: Mounting the slimline ODD in the installation frame (A)
Ê Fit the slimline ODD into the slimline ODD installation frame.
Ê Ensure that the four pins on the frame (see circles) engage with the screw
holes on the drive.
