Ê Secure the slimline ODD mounting bracket on the 4x 3.5-inch HDD
extension box with two M3 x 4.5 mm screws.
Figure 460: Removing the slimline ODD dummy module

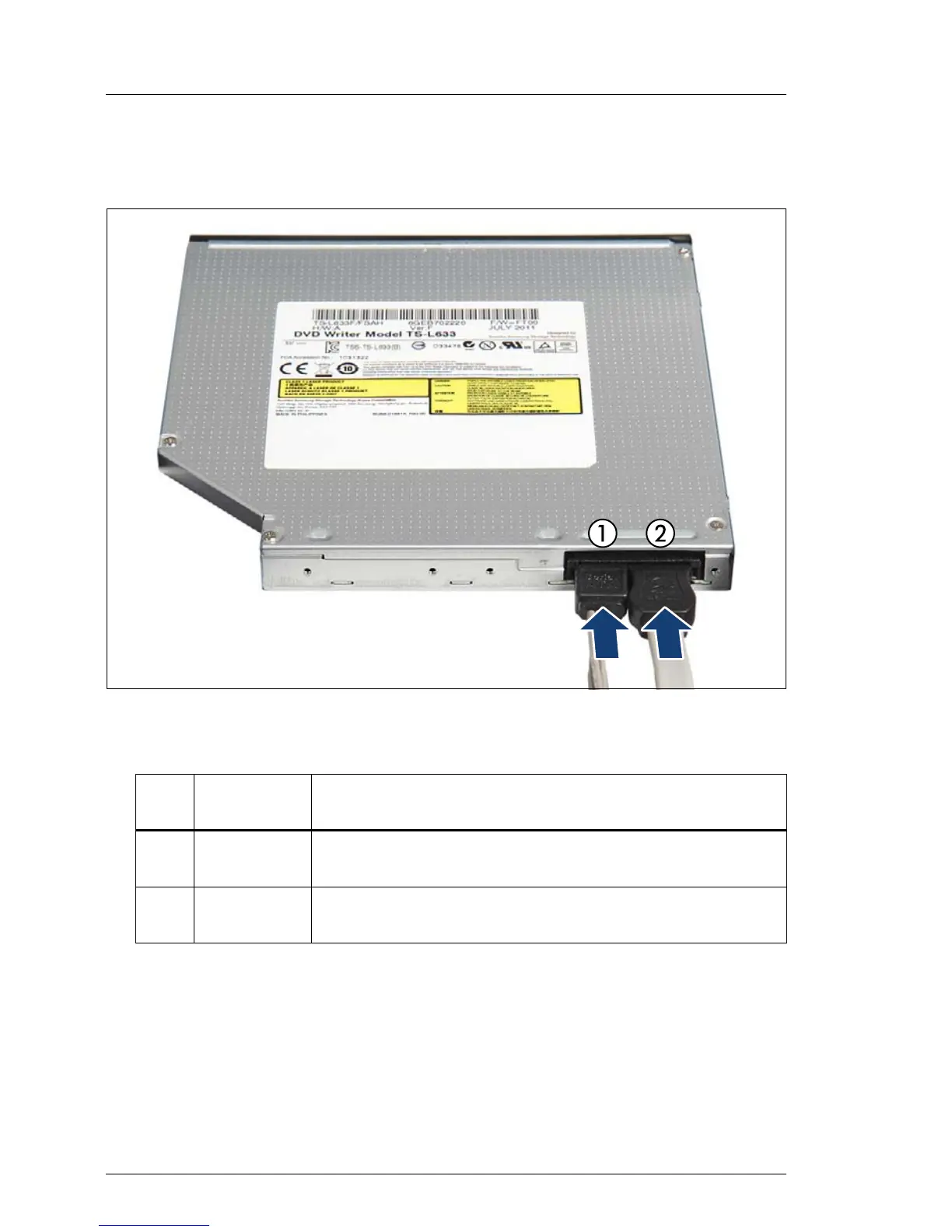

Ê Connect cables to the slimline ODD:
#
Cabling
list no.
1
1
The cabling list numbers refers to section "List of used cables" on page 736.
Cable
1 8A / 8B
Slimline ODD SATA power cable
(T26139-Y3986-V302 / T26139-Y3986-V305)
2 20
SATA cable
(T26139-Y3958-V205)
