Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 635
Front panel and external connectors

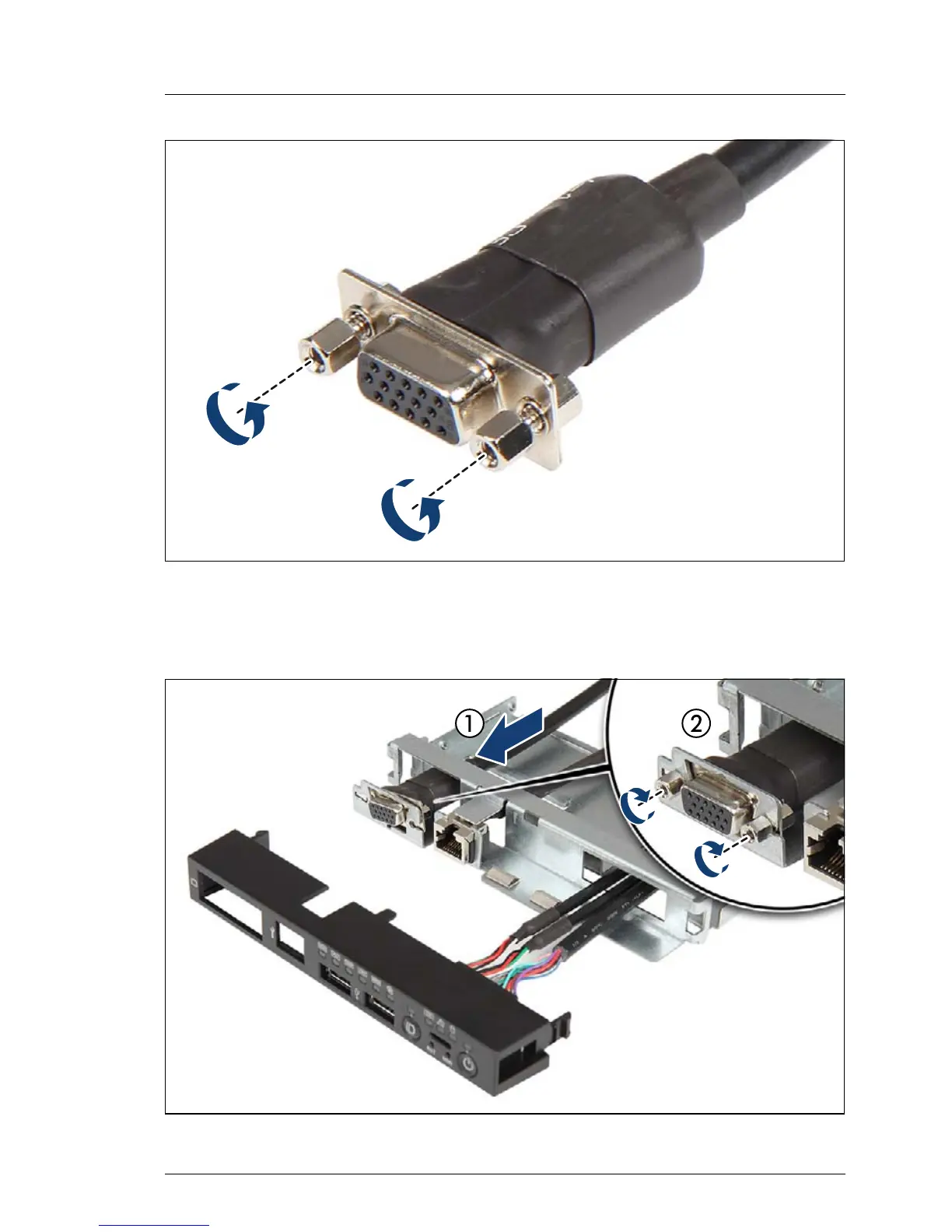

Figure 498: Preparing the front VGA cable
Ê Remove the two hexagon bolts (UNC #4-40, V26827-B408-V989) from the
VGA connector.
Figure 499: Mounting the front VGA connector
