TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 651
System board and components

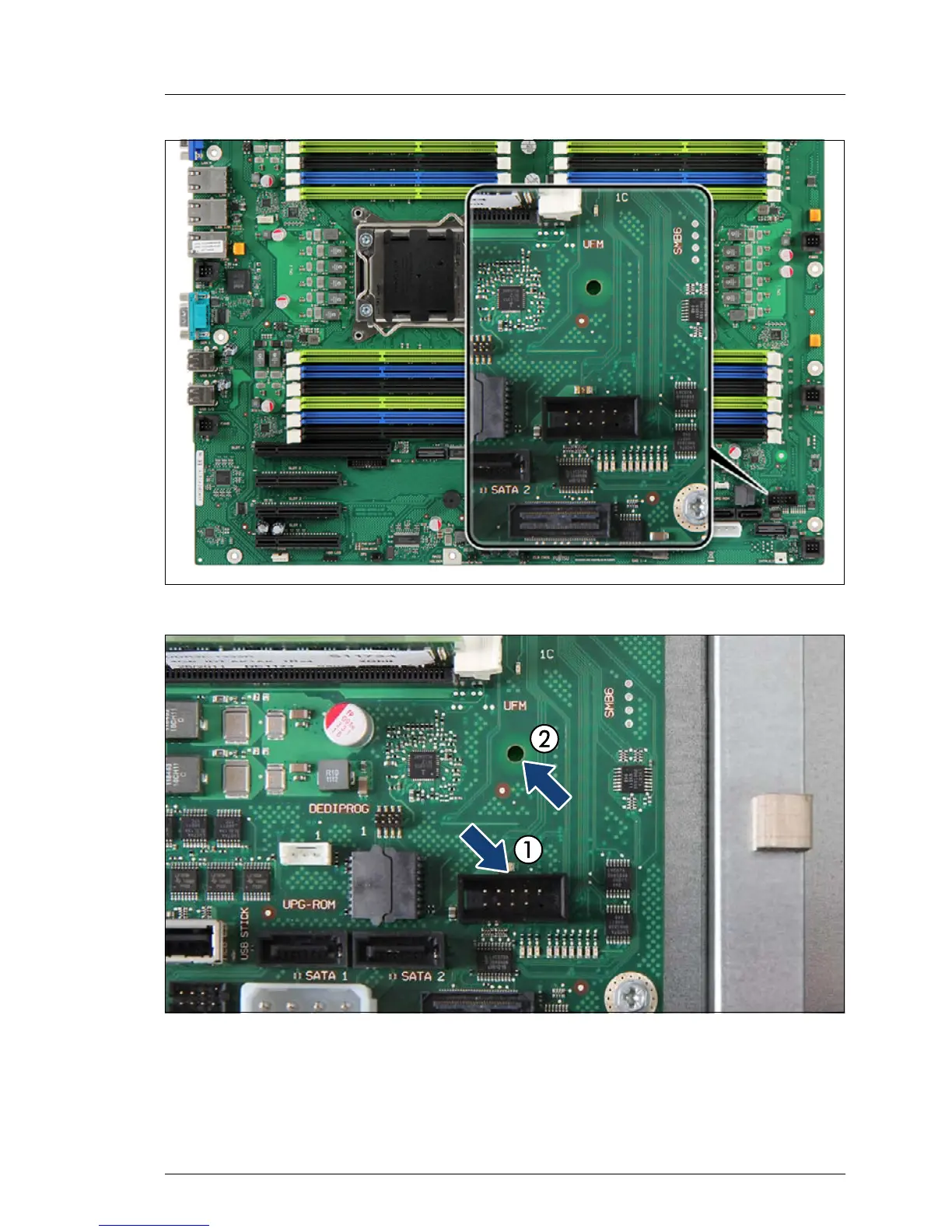

Figure 508: UFM mounting location
Figure 509: UFM mounting location (detail)
UFM mounting location on the system board:
1 UFM connector
2 Cut-out for UFM spacer
