Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 663
System board and components

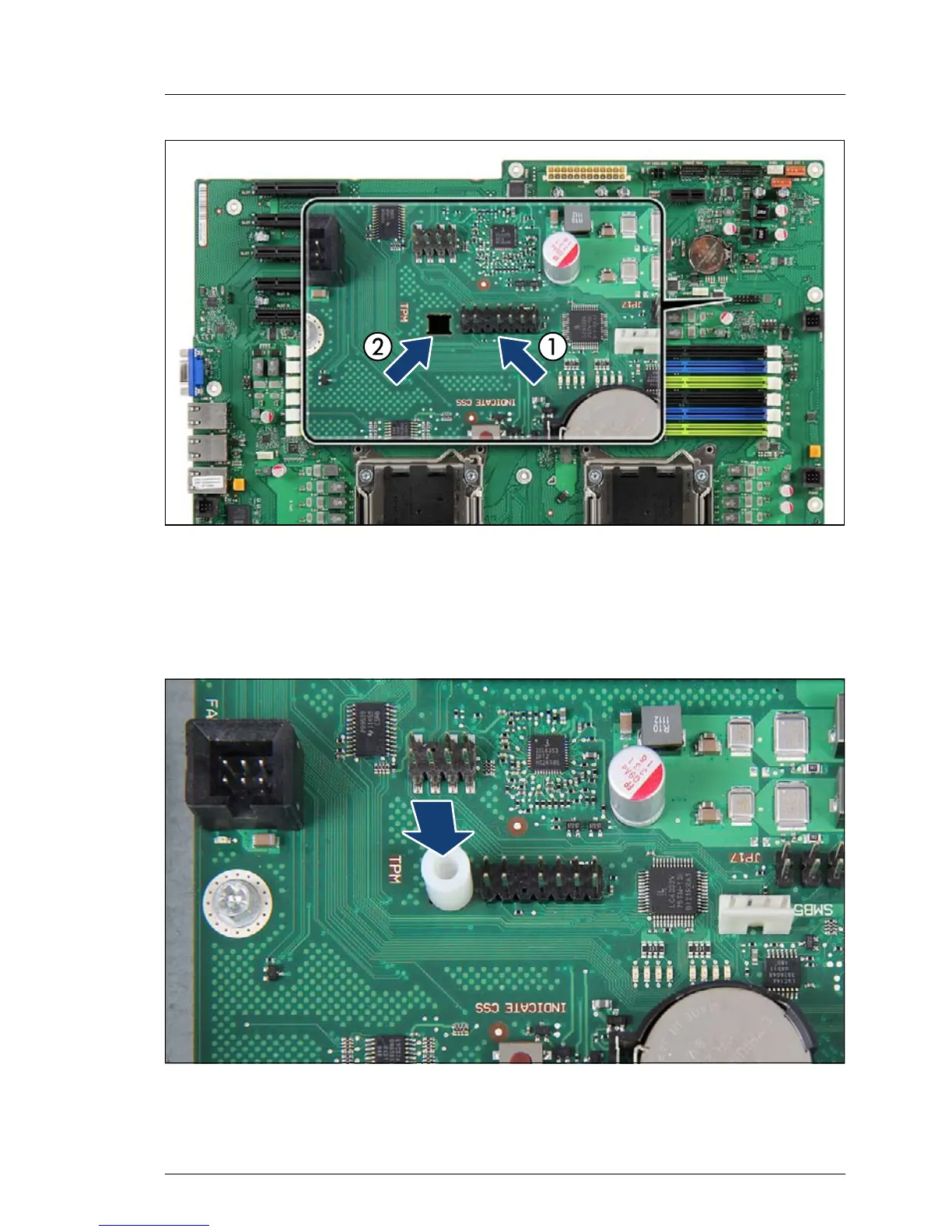

Figure 518: TPM mounting location
TPM mounting location on the system board:
1 TPM connector
2 Cut-out for TPM spacer
Figure 519: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
