702 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
System board and components

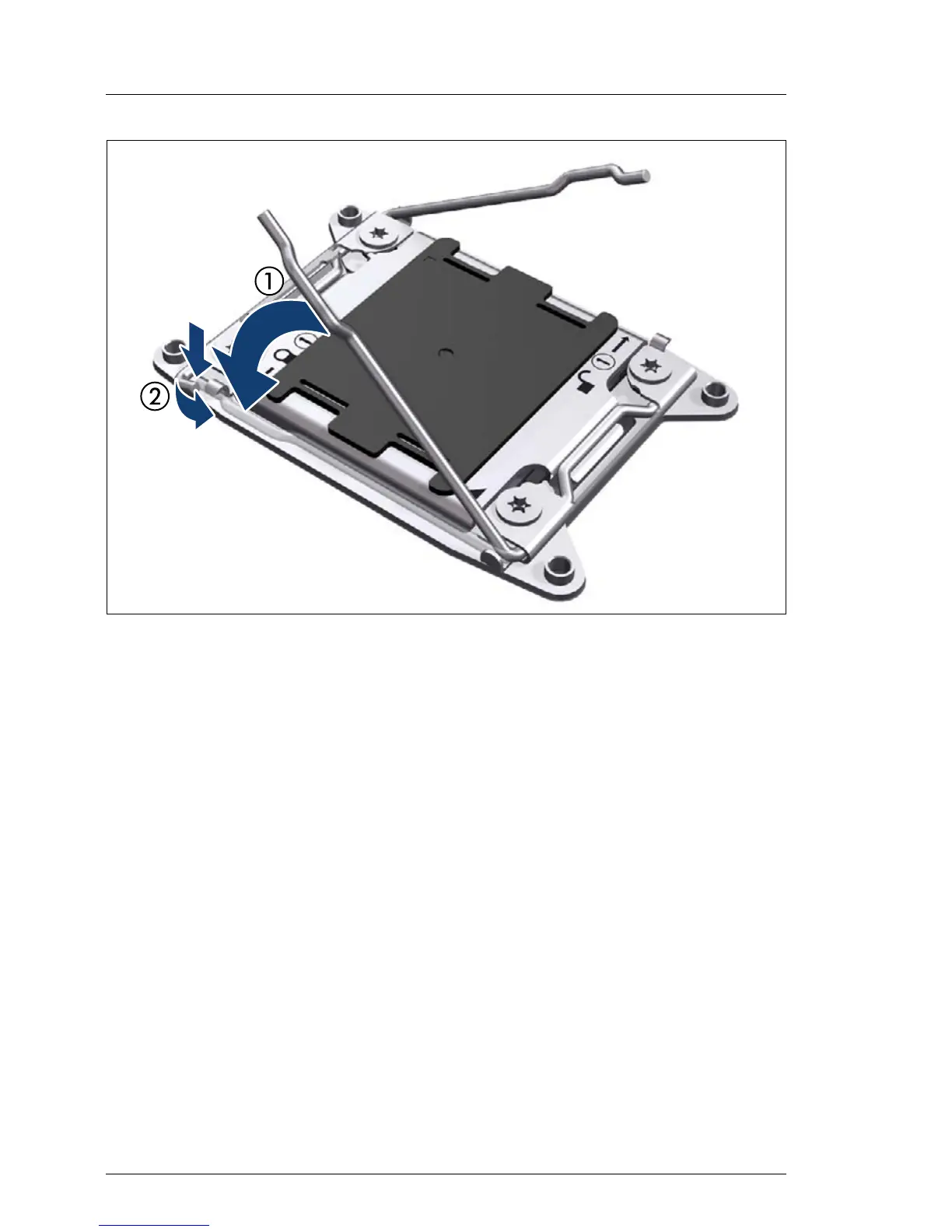

Figure 548: Closing socket release lever 2
Ê Fully close and hold shut the load plate.
Ê Close the socket release lever marked Close 1st (1) and latch it under the
load plate retention tab to lock down the load plate (2).
