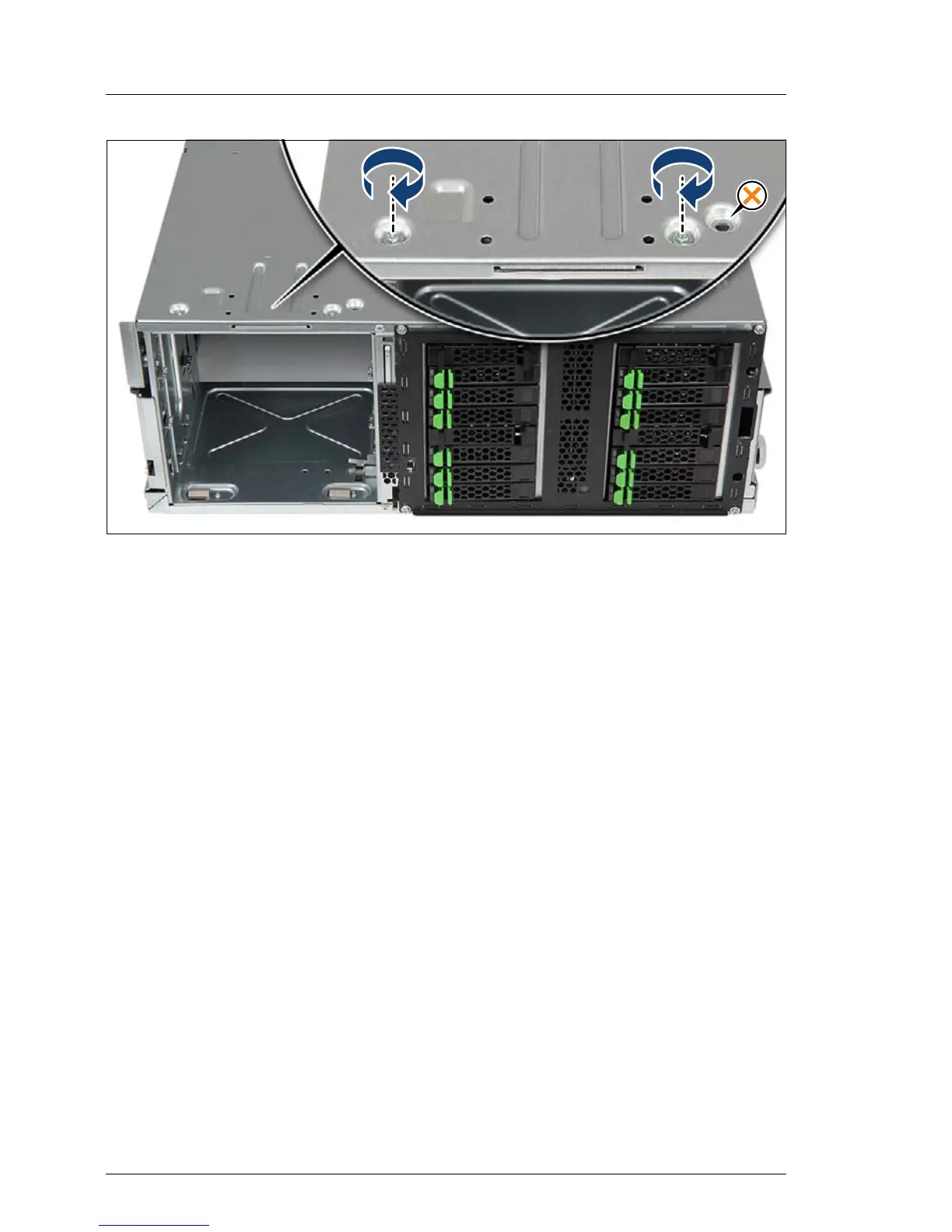

Figure 569: Securing the accessible drive cage (C)
Ê Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Ê Carefully turn the server upside down.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
Ê Secure the accessible drive cage with two screws on the bottom side of the
chassis.
I Note the correct screw positions (see close-up): The screw hole on
the right that has been used in the tower configuration remains empty.
