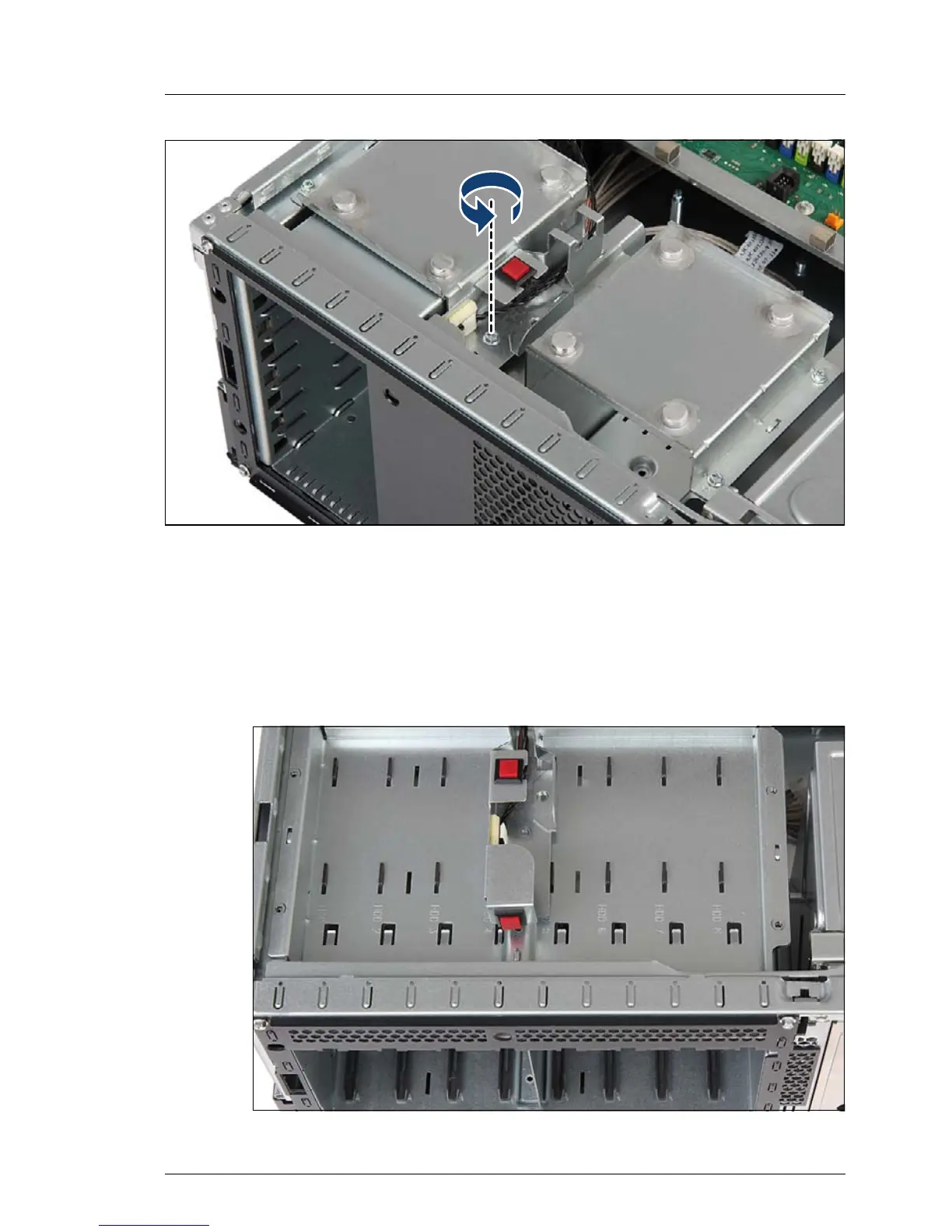

Figure 603: Removing the intrusion switch holder (A)
Ê Remove one screw from the intrusion switch holder as shown.
I Replacing the intrusion switch cable is illustrated by the example of
the 2.5-inch HDD model. In case of the 3.5-inch HDD model, the
procedure is identical, although the HDD bay top cover looks slightly
different:
Figure 604: Intrusion switch holder in 3.5-inch HDD configurations
