TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 89
Basic hardware procedures

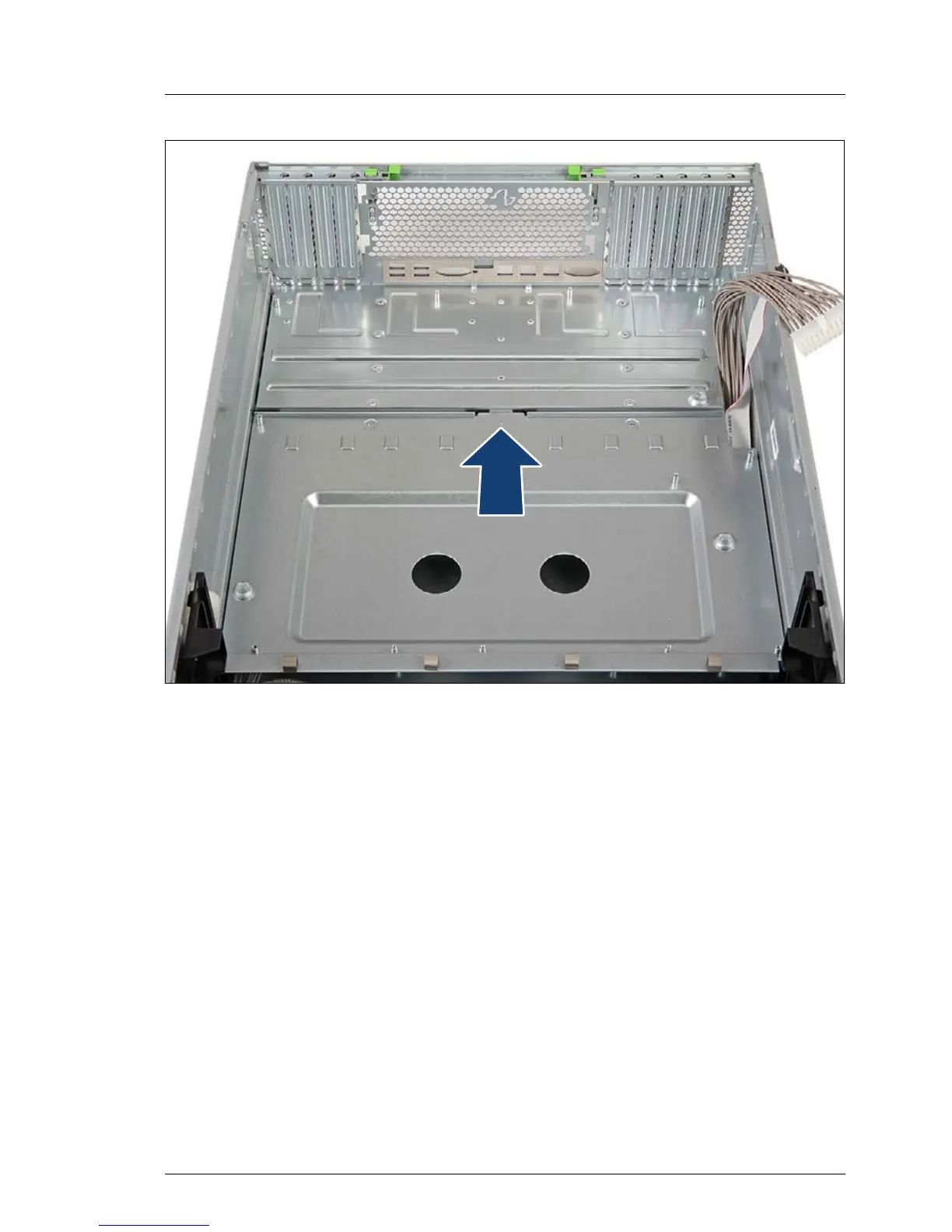

Figure 36: Mounting the system board carrier (B)
Ê Slide the system board carrier towards the server rear until the latch on the
carrier properly engages in the slot on the rear server floor.
V CAUTION!
Ensure not to trap or pinch any cables running through the cable exit
from the power backplane.
