HP DesignJet T730

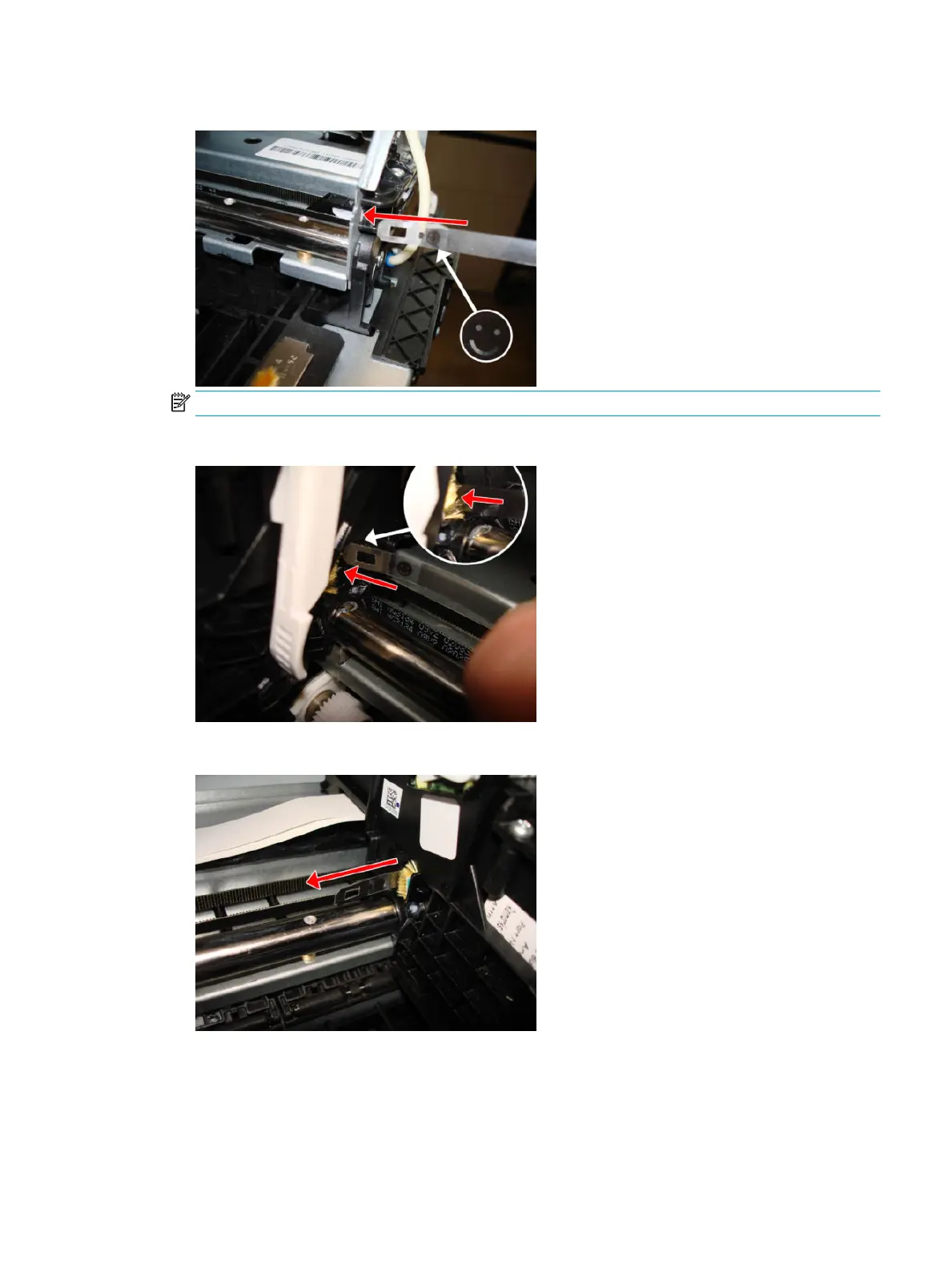

2. Pass the Encoder Strip through the hole of the bracket. Very important: The face is shown here:
NOTE: The Encoder Strip must be inserted from the right side of the Carriage into the left side.
3. Pass the Encoder Strip through the hole of the Carriage, taking care not to bend it.
4. The Encoder Strip should go out through the other side of the Carriage as shown.
ENWW Encoder Strip 303
