HP DesignJet T730

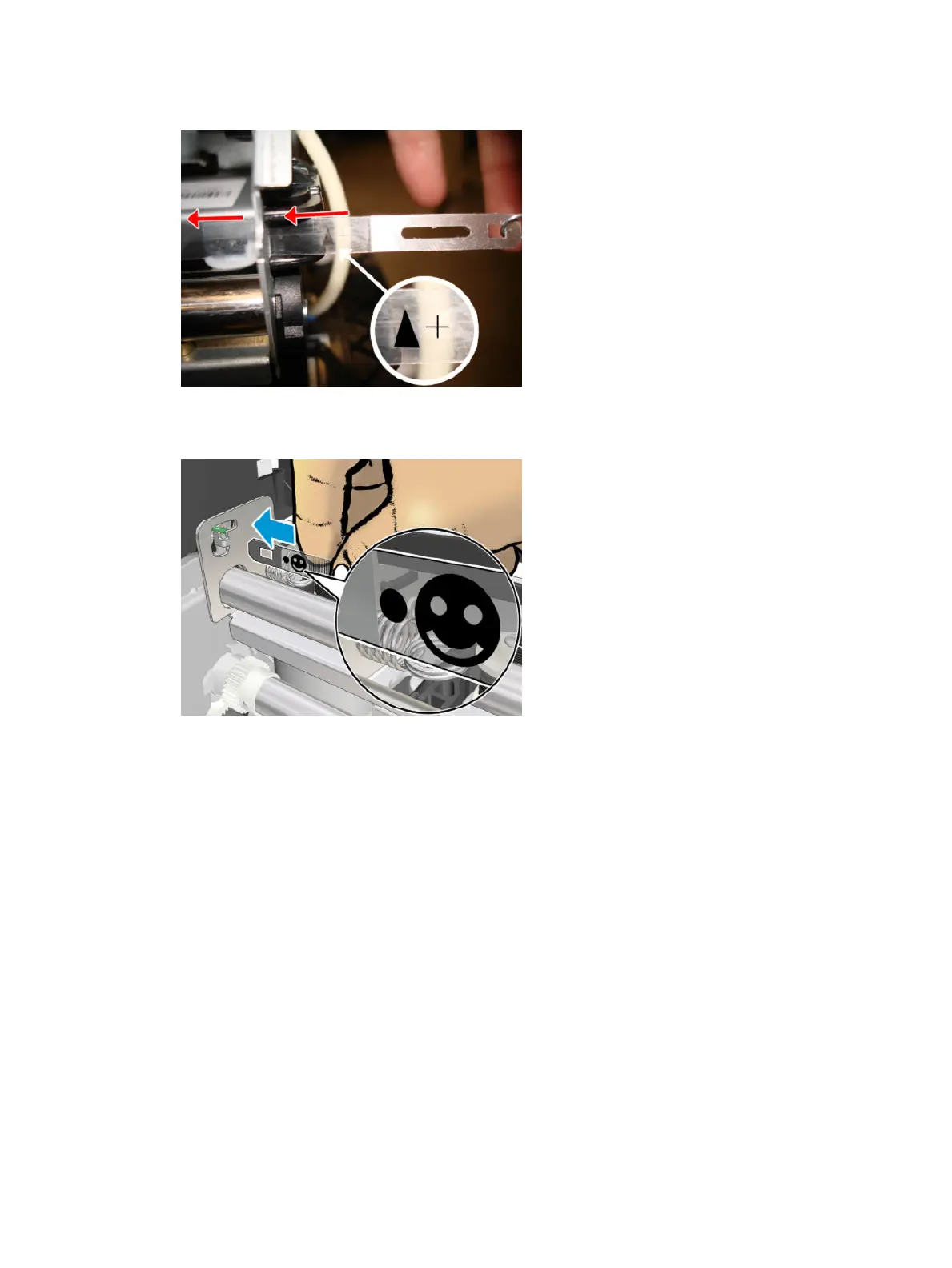

5. The right end of the Encoder Strip must have the triangle in the position as shown below.
6. When you attach the left end of the Encoder Strip to the hook, make sure the position of the face is as
shown below.
7. Attach the Encoder Strip at the left before attaching the spring at the right.
304 Chapter 5 Removal and installation ENWW
