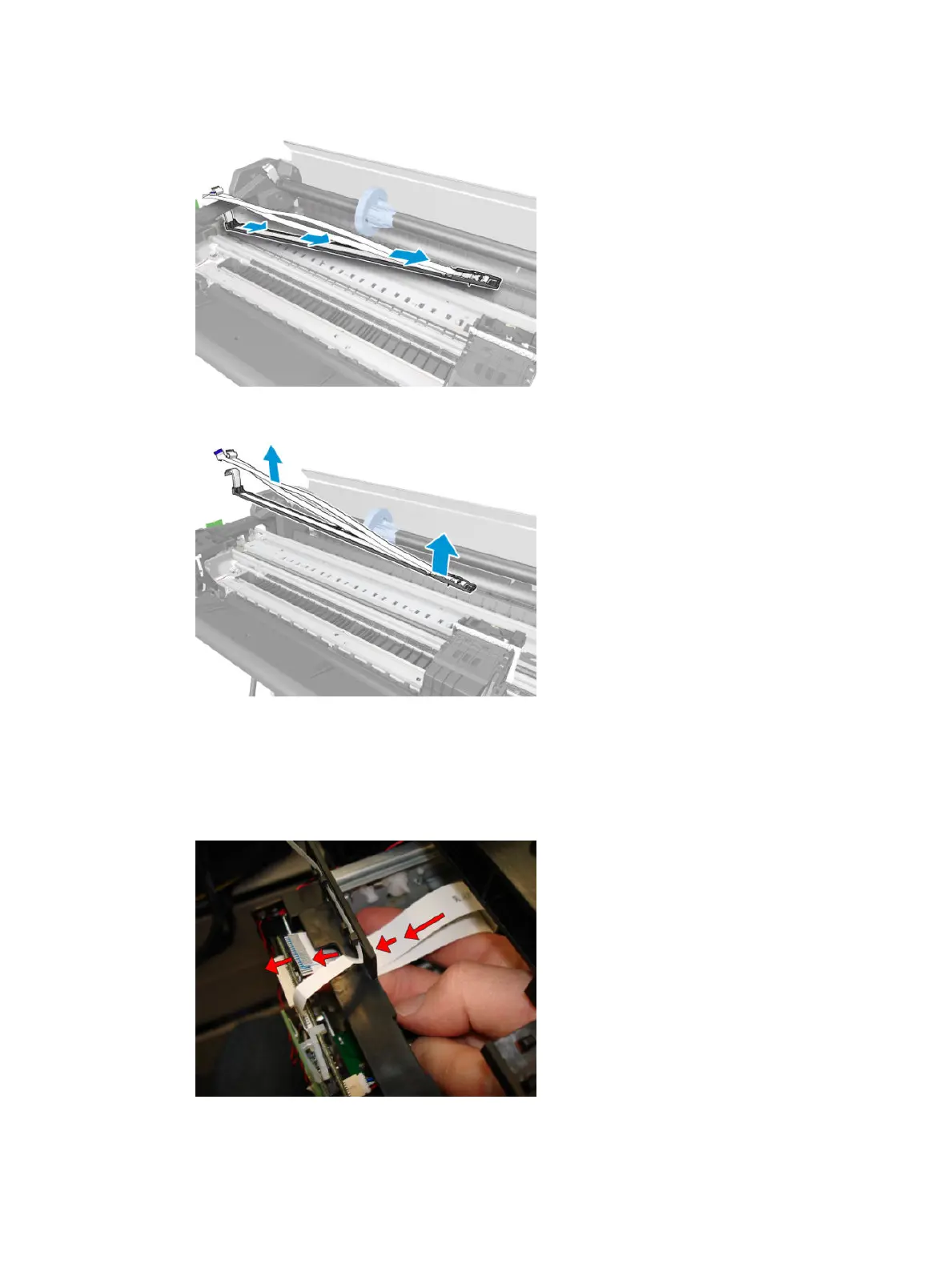

23. Slide the Trailing Cable to the right, passing the at cables through the hole.
24. Remove the Trailing Cable.
Installation
You are recommended to wear gloves throughout the installation; and be careful not to touch the Encoder
Strip.
1. Pass the Trailing Cable through the Main PCA Cover and through the ferrite.
ENWW Trailing Cable 331
