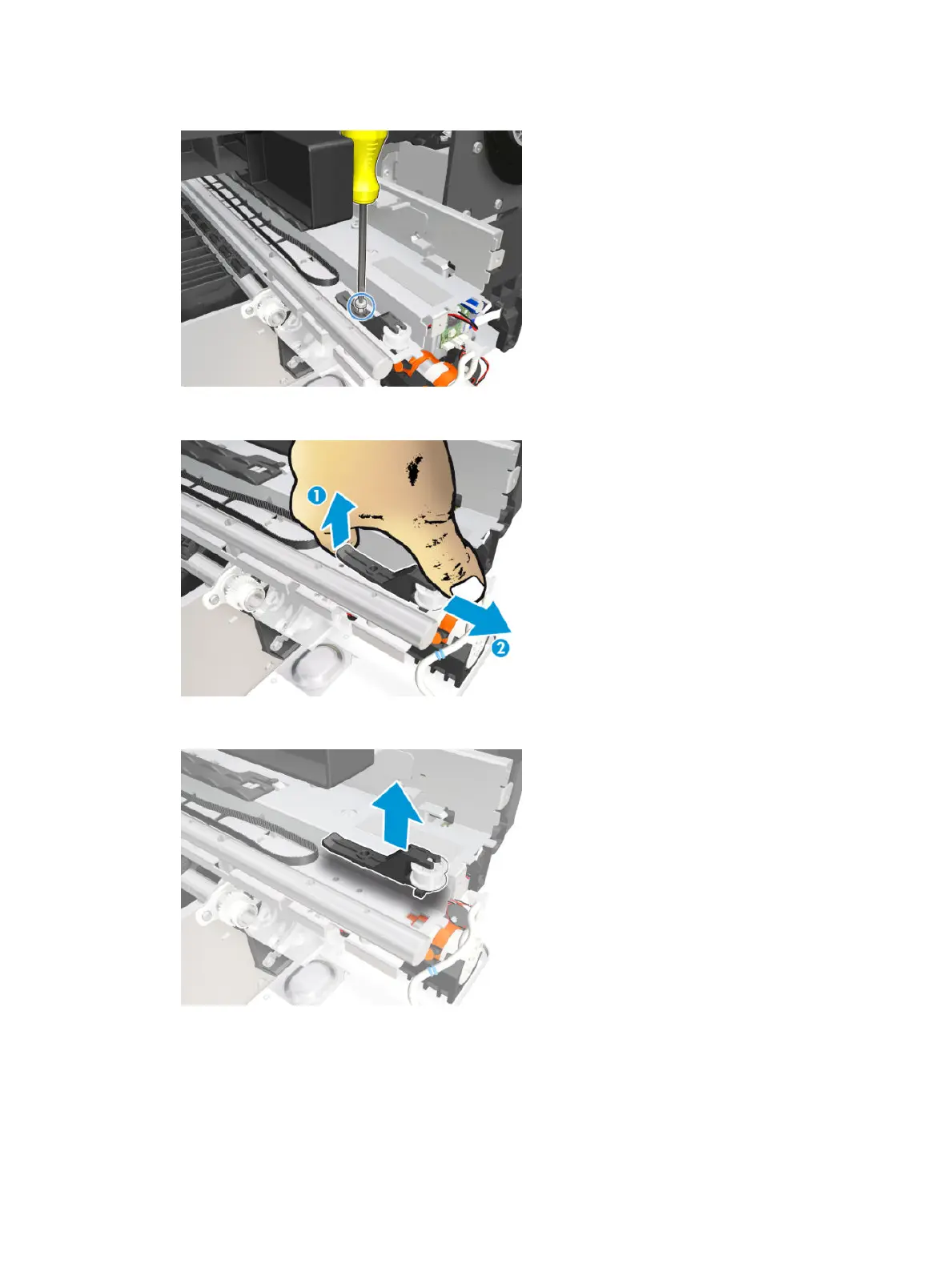

22. Remove one T-15 screw .
23. Unclip the pulley latch shown here (1) and slide it to the right (2).
24. Remove the pulley latch..
348 Chapter 5 Removal and installation ENWW
