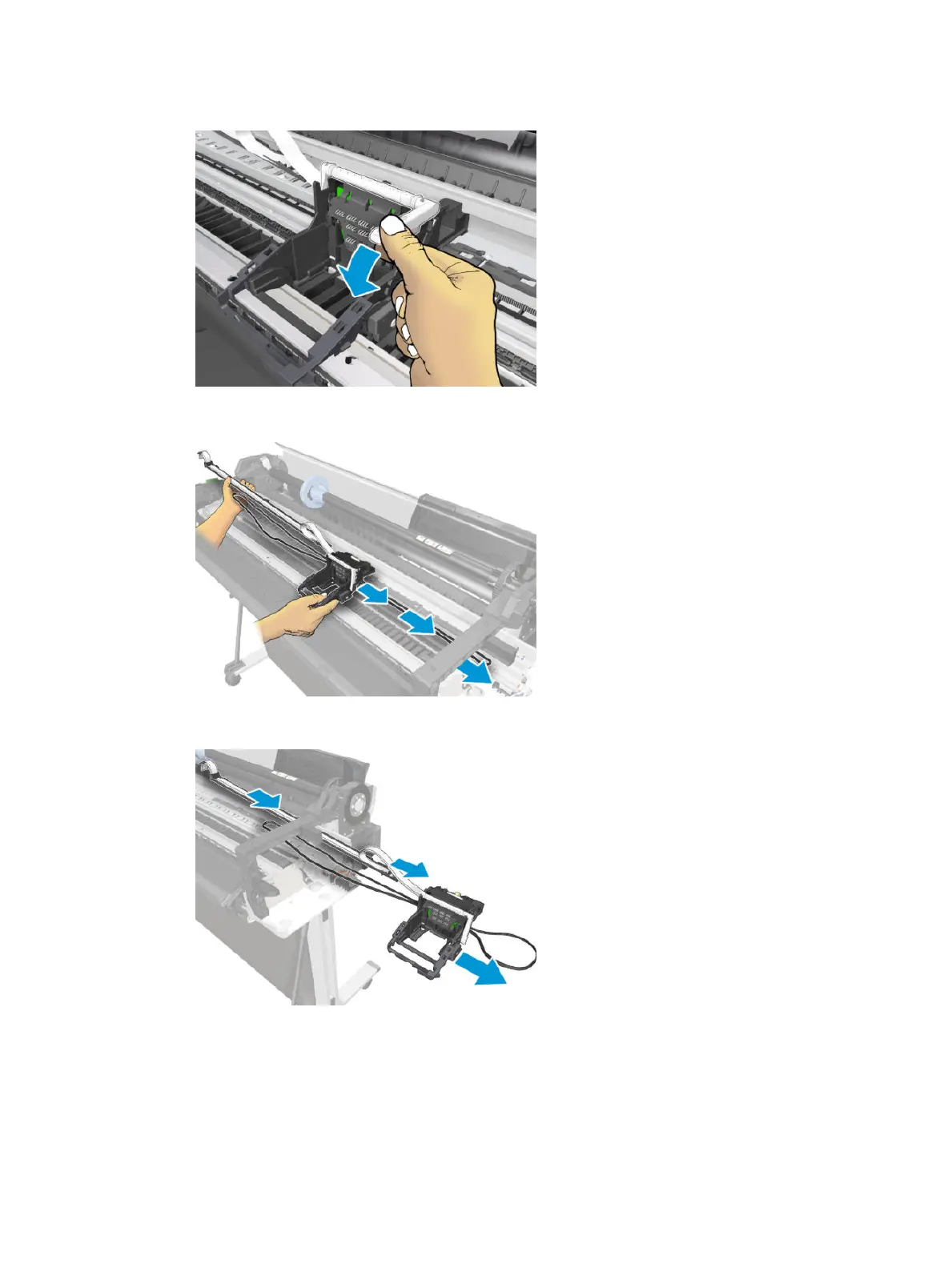

25. Pull the latch down.
26. Slide the Carriage, the Belt, and the Trailing Cable to the right.
27. Remove the Carriage Assembly.
Installation
1. To reinstall the Belt, use a screwdriver to lever the Belt back on.
ENWW Carriage and Belt 349
