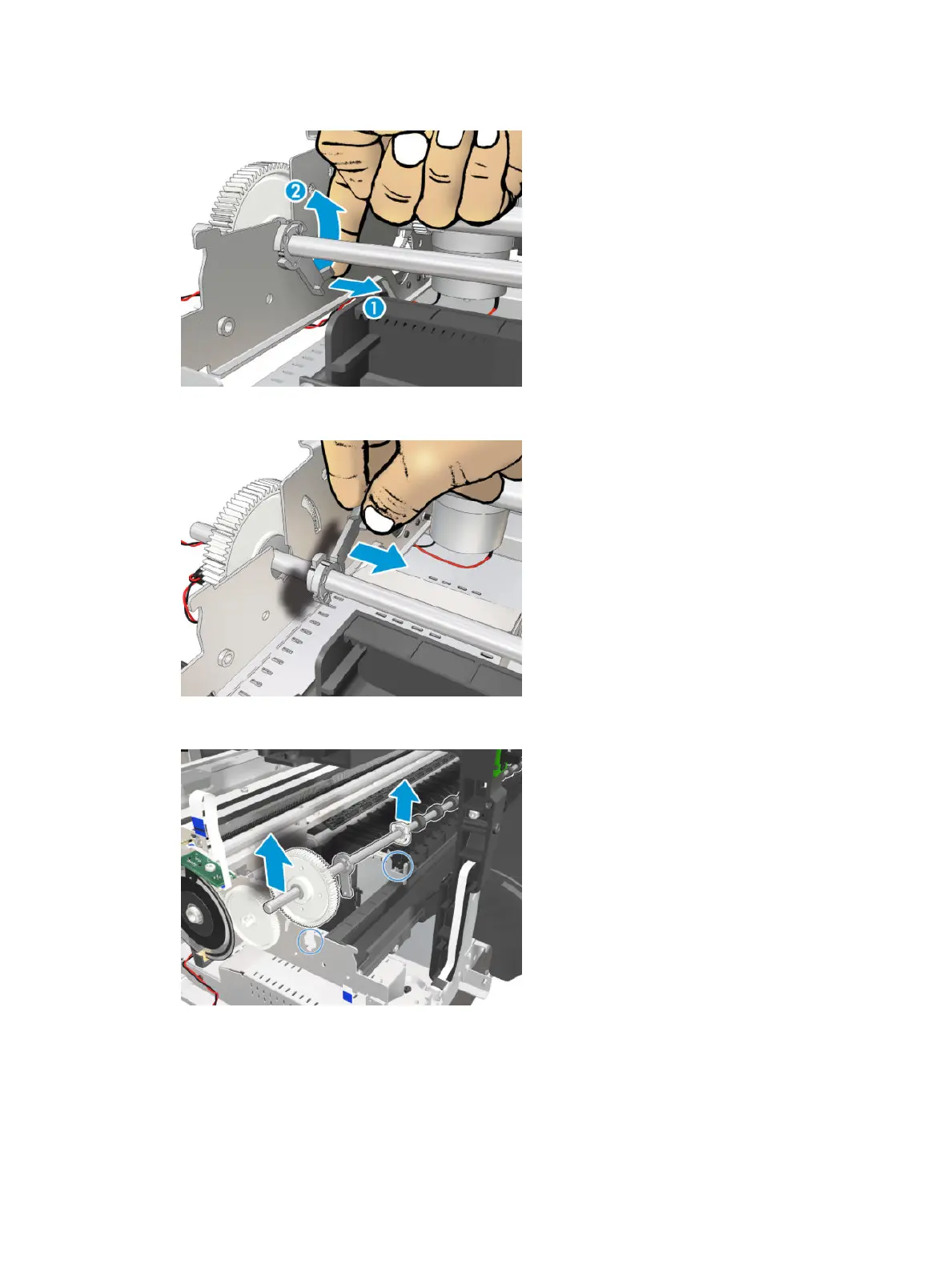

23. Pull the Left Bearing to unclip it from the hole (1), then rotate it (2).
24. Slide the Left Bearing to the right.
25. Move the Output Shaft up to detach the Middle Bearing.
362 Chapter 5 Removal and installation ENWW
