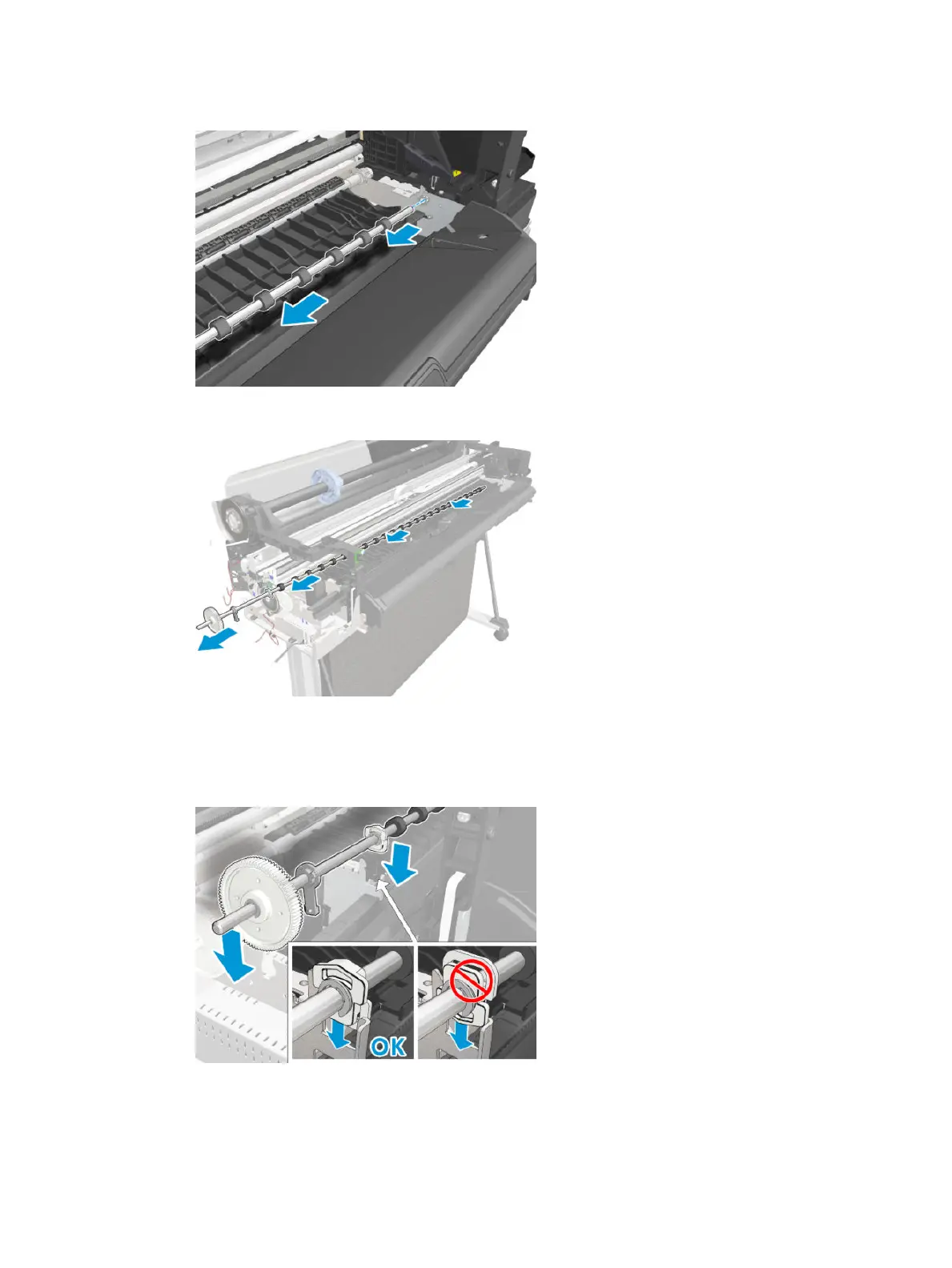

26. Slide the Output Shaft to the left to release it from the hole.
27. Remove the Output Shaft .
Installation
1. If you nd the Middle Bearing mounted from the factory in a dierent position (rotated by 180º), this is
also correct.
ENWW Output Shaft 363
