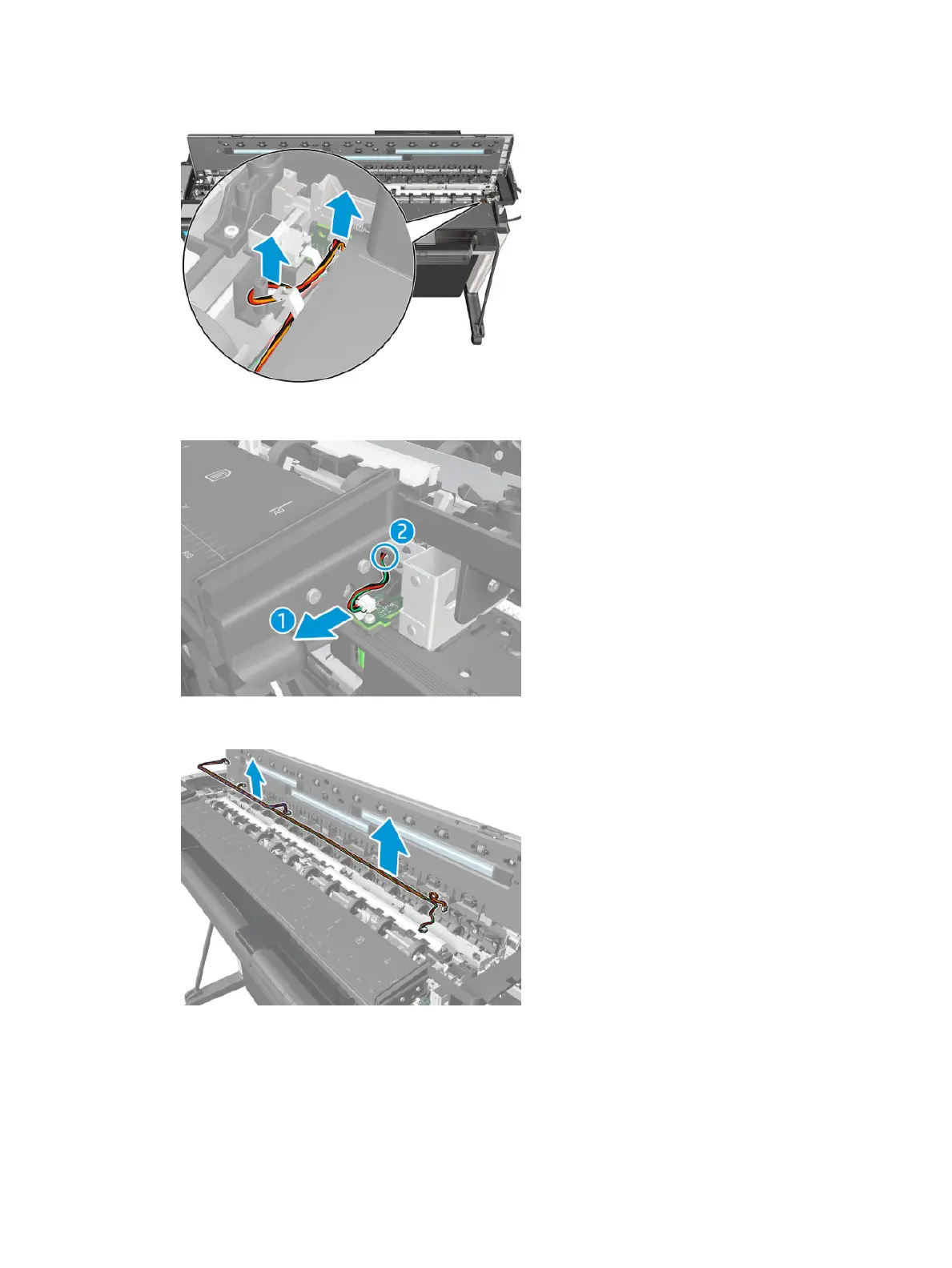

8. Disconnect the cable from the Latch Magnetic Sensor.
9. Disconnect the cable from the Diverter Magnetic Sensor and unroute it through the hole.
10. Remove the cables.
450 Chapter 5 Removal and installation ENWW
