HP DesignJet T730

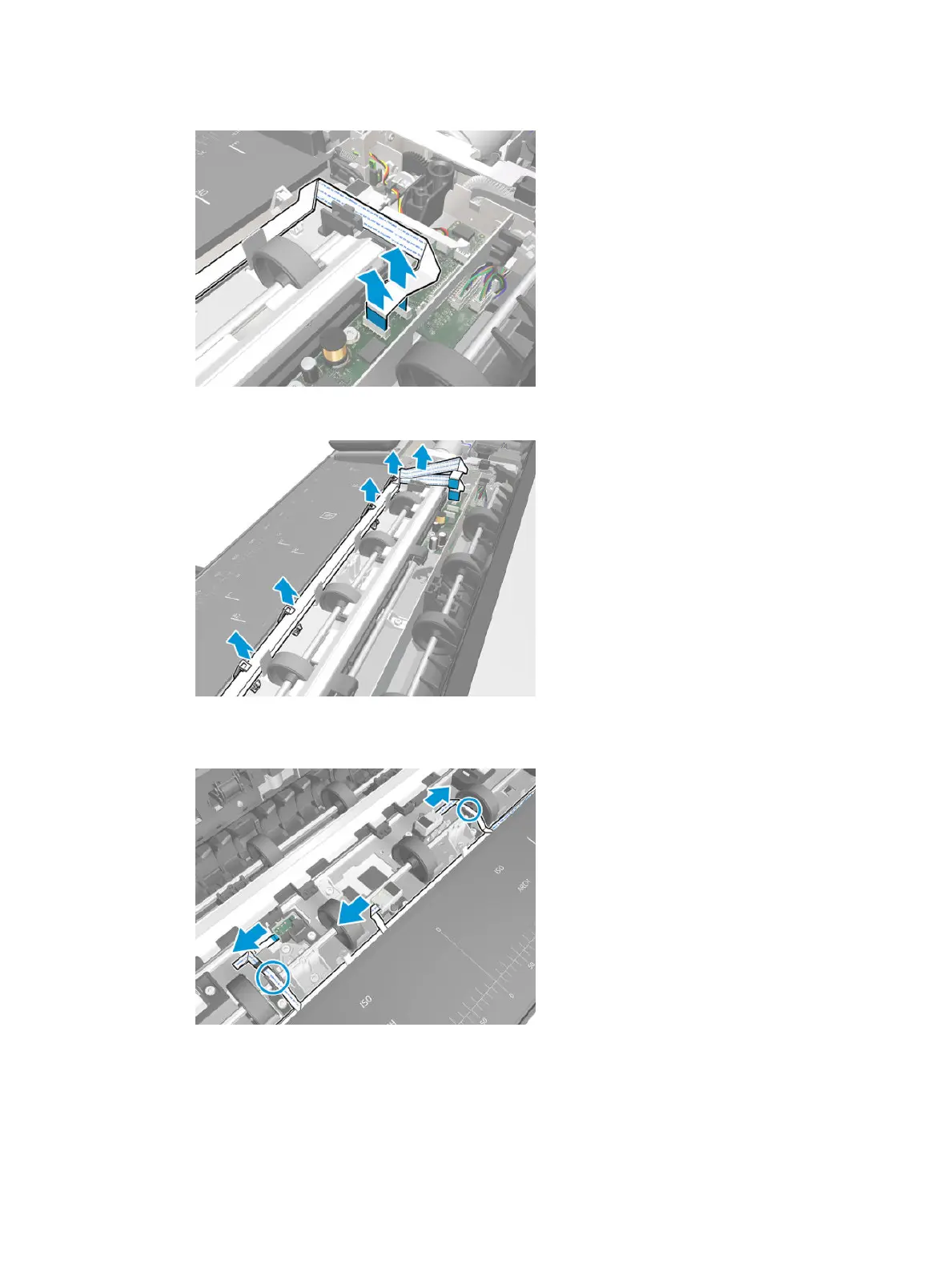

11. Disconnect two FFC cables from the Scan Bundle Board PCA.
12. Detach the two FFC cables from the wire-saddles and holders.
13. Disconnect and detach the two FFC cables from the bottom and top Form Optical Sensor, then
disconnect one FFC cable from Load Optical Sensor.
ENWW Bottom Cables F9A30-67034 451
