Group 10 Equipping/Maintenance Page 265
JET2 neo Release R1.12 en
9. If the ink or solvent type is compatible and the bottle was successfully activated the
filling can be carried out as described in the following steps.
Inflammable (Risk of fire)!
Combustible gases and liquids cause serious burns. Sources of
ignition must be kept away from the device!
Attention!
Before the filling process a static discharge has to be carried out
necessarily! For this you have to touch the cabinet of the printer
directly or you have to stand with ESD-shoes on an grounded
surface before the filling or during the process!

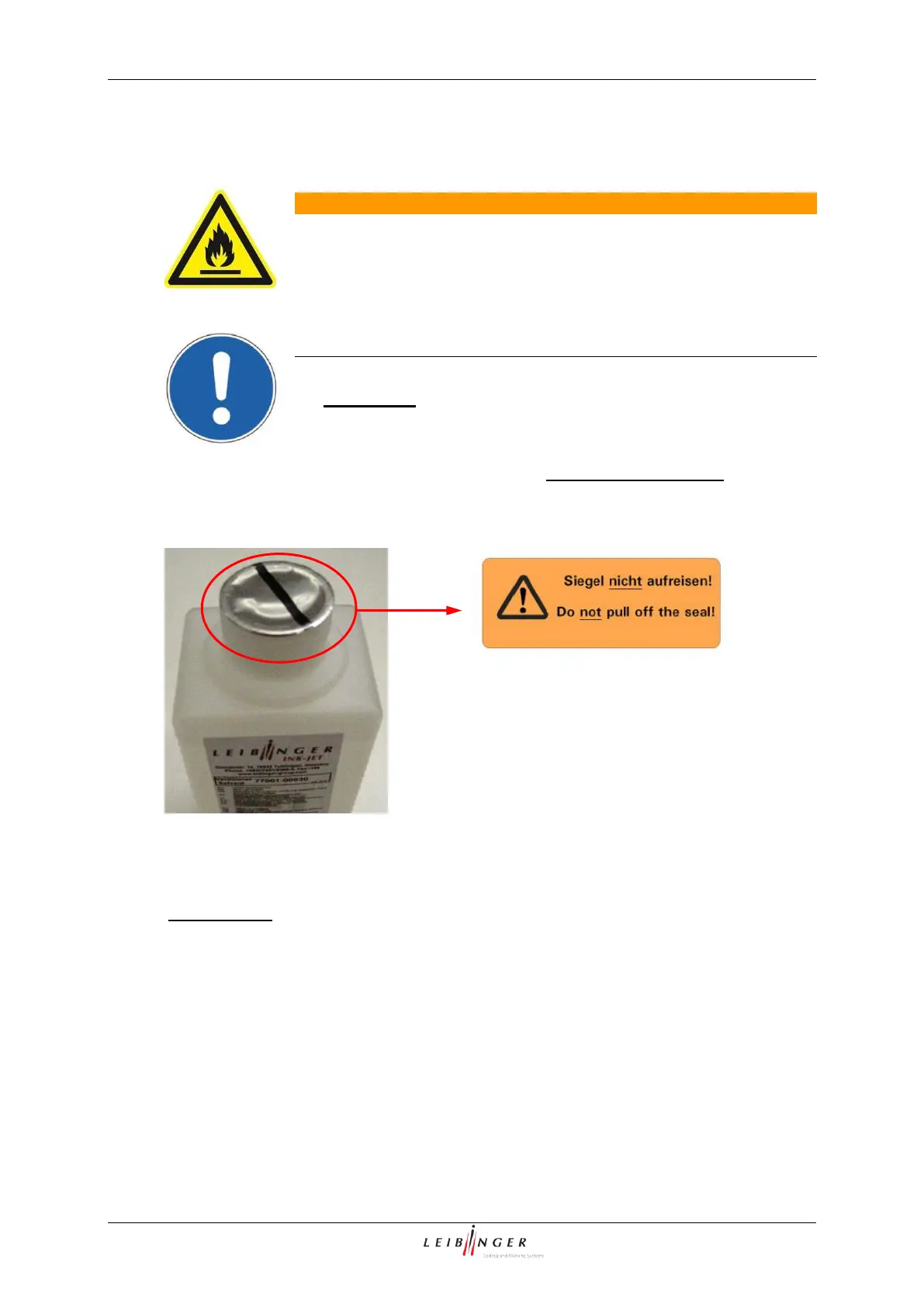

The sealing of the refill bottle should be not opened!
Now open the red cap of the ink or solvent bottle but do not pull of or damage the seal!
10. Fill up ink or solvent depending on the shown refilling message.
ATTENTION!
The ink reservoir tank is placed on the left side the solvent reservoir tank is placed on
the right side!
Screw on the still sealed re-fill bottle on the corresponding reservoir tank. Because of
this the seal of the bottle will be breached and the closing valve of the tank will open
automatically and the reservoir tank is filled up.
