Dehumidification Heater (PFU)
SM 2-127 D0CA/D0C9/D0C8/D0CB

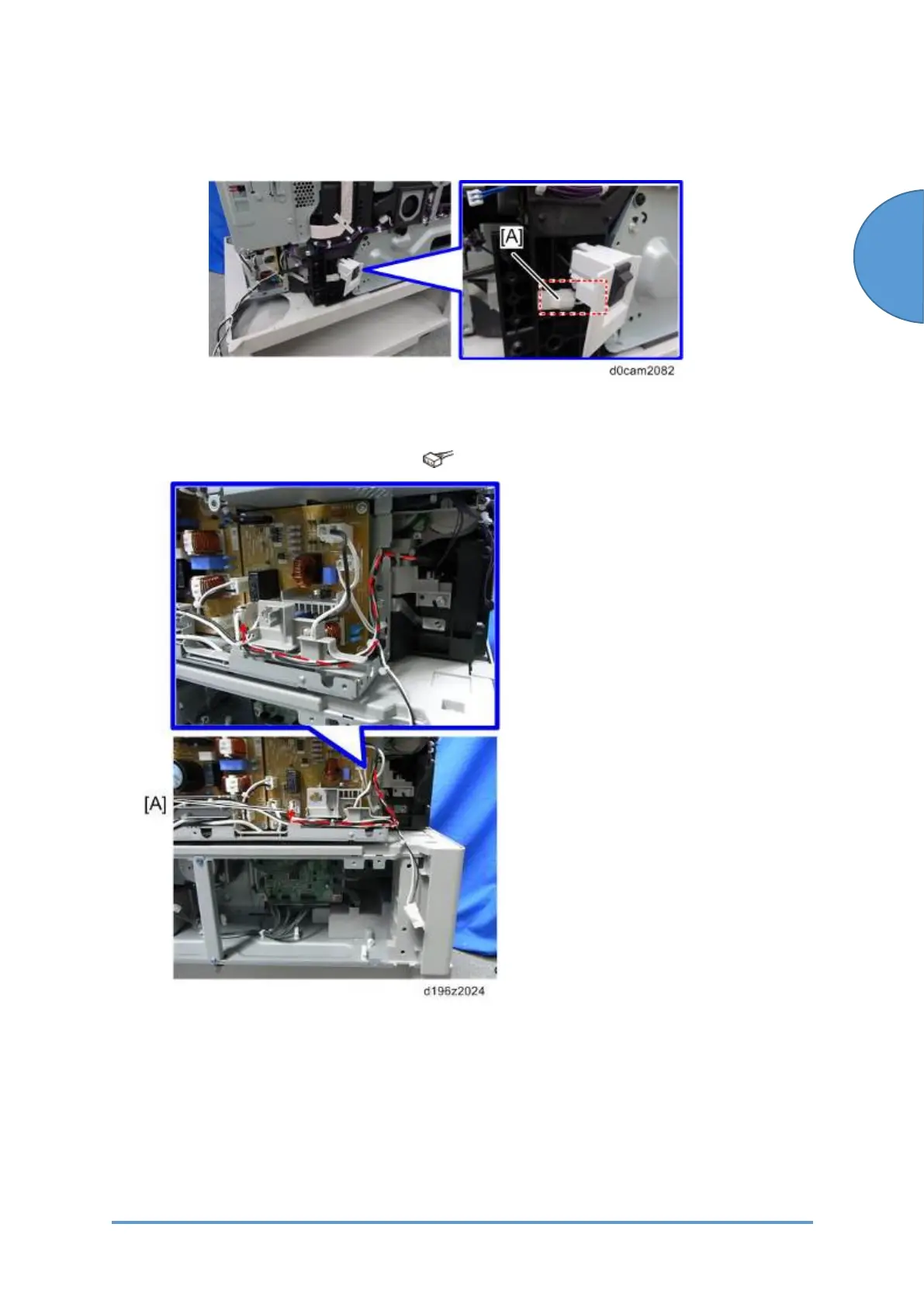

• Store the connector [A] into the area as shown below, then attach the switch
cover.
12. Reattach the switch cover.
13. Connect the connector [A] to CN600 on the PSU (PCB17) and route the junction harness
along the red dotted line in the photo. (
× 1)
To Next Page
